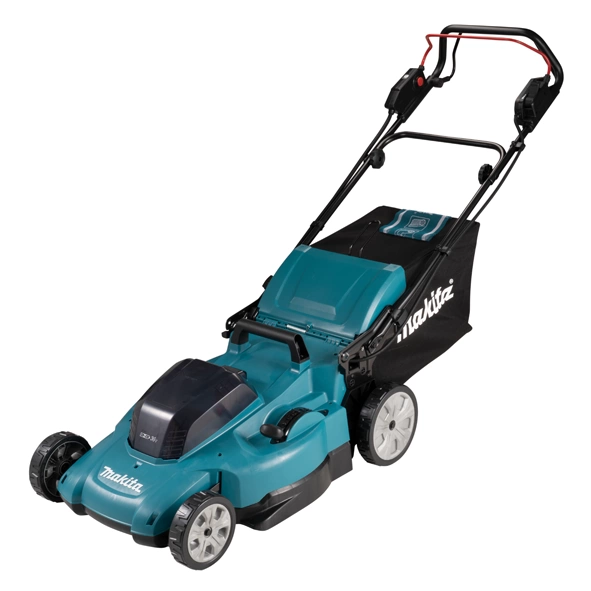

DLM539Z 530 mm (21")

18Vx2 Cordless Lawn Mower


  • Large, high grip PVC tires enlarge the ground contact area to sustain higher performance in running over muddy or bumpy yard
  • 4 in 1 (Cutting/ Collecting/ Mulching/ Rear discharge)
  • Multi-purpose 2-tooth blade for mowing and mulching
  • Improved grass collection efficiency achieved by re-designing the inside of the deck to a streamlined shape
  • Handle height can be adjusted without tool simply by pulling spring type Lock pin to release the lock
  • Self-propelled for reduce operator fatigue
  • Compact storage of Grass catcher; The handle of Grass catcher can be hooked on the handle pipe of the machine for compact vertical storage
  • Easier cutting height adjustment; Easy-to-grip egg-shaped lever; Positioning grooves for the lever can be visually confirmed
  • attery protection circuit protects against overloading, over-discharging and over-heating



Model NameDLM539Z
Product Name18Vx2 Cordless Lawn Mower
Max Output860 W
Cutting Width534 mm (21")
Cutting Height20 - 100 mm (13/16" - 3-15/16")
Grass Box Capacity70 L
No Load Speed (RPM)3,000
Dimensions (L x W x H)1,810 - 1,870 x 580 x 920 - 1,040 mm (71-1/4-73-1/2" x 23" x 36-1/4-41")
Net Weight28.0 - 30.5 kg (61.7 - 67.2 lbs.)
Continuous Usage Time22 min (Self-Propelled) | 25 min (Push-Drive) with BL1860B x2

Standard Equipment
Blade, Mulching Plug, Socket Wrench, Rod

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
