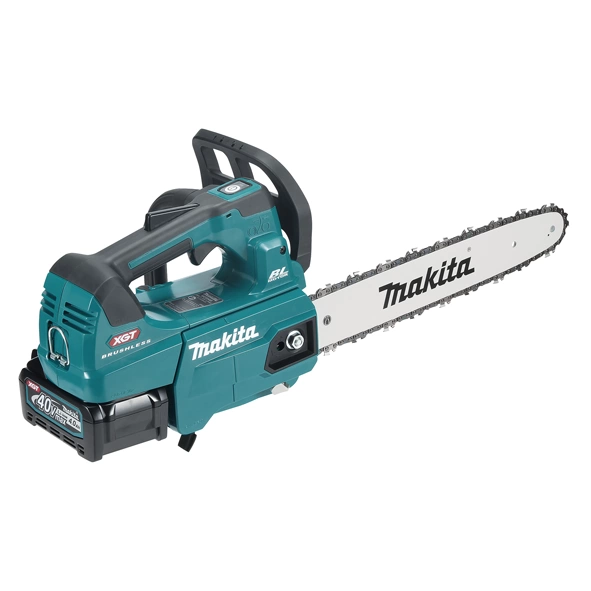

UC004GM101/ GZ 350 mm (14")

40Vmax Cordless Chain Saw


Features


  • Lightweight for reduced operator fatigue
  • Outer Rotor BL motor direct-drive system delivers 0-24.8 m/s (0-1,490 m/min) (0-4,880 FPM) chain speed for fast cutting, equivalent to 30 mL class engine chain saw
  • Main power switch with auto power-off function for battery saving and avoiding unintentional start up
  • Captive nuts minimize loss of nut
  • Large oil filling port with view window allows operator to easily add and check bar oil level
  • Chain speed: Max 24.8 m/s
  • Hook on the bottom of housing for excellent balance on tree when hanging the machine
  • Metal spike bumper firmly grips workpiece to provide more control, making cutting easier
  • Adjustable automatic chain lubrication with large oil reservoir

Specification



Thumbnail
Model NameUC004GM101/ GZ
Product Name40Vmax Cordless Chain Saw
Guide Bar Length350 mm (14")
Chain Pitch3/8"
Chain Gauge1.1 mm (0.043")
Chain Speed0 - 24.8 m/s (0 - 1,490 m/min)
(0 - 4,880 FPM)
Oil Tank Capacity200 mL
Dimensions (L x W x H)266 x 194 x 227 mm (10-1/2" x 7-5/8" x 8-15/16")
Net Weight3.8 - 4.7 kg (8.4 - 10.4 lbs.)
Work Amount160 cuts with BL4040 & 90PX chain
Cutting 100 x 100mm Cedar square timber

*Recommended batteries 2.5Ah, 4.0Ah

Standard Equipment
Saw Chain, Guide Bar, Guide Bar Cover, Oil Supply, Round File, Box Wrench, Safety Goggles (195246-2)

Available Options
GM101: 1x Fast Charger, 1x 4.0Ah Battery
GZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
