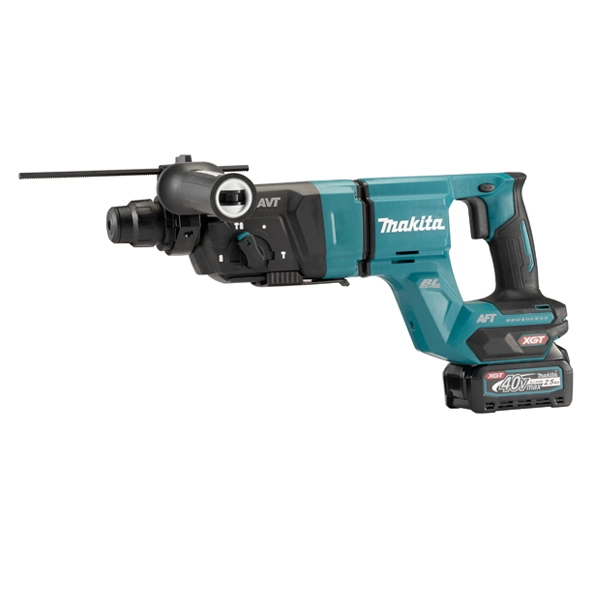

HR007GM201/ GZ 28 mm (1-1/8")

40Vmax Cordless Combination Hammer


  • 3-mode operation;“rotation only”, “hammering with rotation” and “hammering only”
  • Built-in torque limiter clutch disengages motor should bit bind
  • Soft grip handle provides increased comfort on the job
  • LED light illuminates drilling surface for more productivity in low light applications
  • One touch sliding chuck enables quick and easy bit changes
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Conveniently located push button for rotation reverse
  • Electric brake for maximum productivity



Model NameHR007GM201/ GZ
Product Name40Vmax Cordless Combination Hammer
Impact EnergyEPTA-Procedure 05/2009: 3.0 J
CapacityMasonry: 28 mm (1-1/8")
Steel: 13 mm (1/2")
Wood: 32 mm (1-1/4")
Core Bit: 54 mm (2-1/8")
Diamond Core Bit: 65 mm (2-9/16")
Impacts Per Minute (IPM)0 - 5,000
No Load Speed (RPM)0 - 980
Dimensions (L x W x H)458 x 101 x 234 mm (18" x 4" x 9-1/4")
Net Weight3.8 - 4.8 kg (8.4 - 10.6 lbs.)
Work Amount118 holes with BL4040
Concrete Grade 40 ø10.5 mm x 60 mm Depth

*Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Side Grip, Depth Gauge, Cloth, Grease Vessel, Air Duct Cap

Available Options
GM201: 1x Fast Charger, 2x 4.0Ah Battery
GZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
