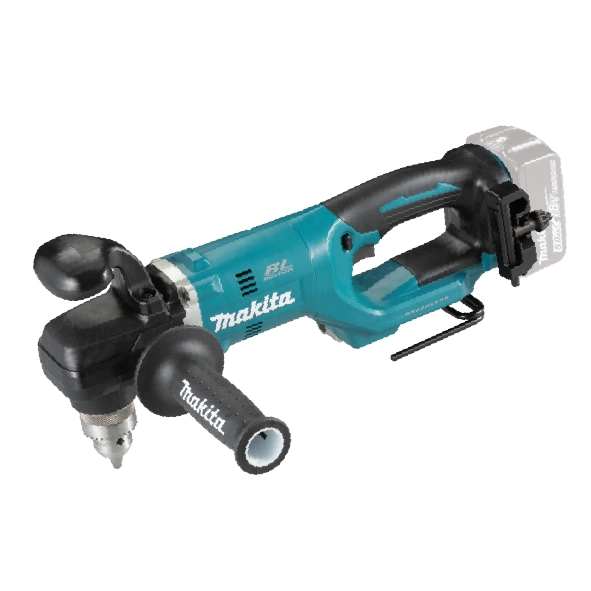

DDA450Z

18V Cordless Angle Drill


Features


  • 18V LXT BL Cordless Angle Drill with Keyed Chuck
  • Compact and lightweight for increased maneuverability in various work postures and reduced user fatigue
  • Hook assembly (anti-drop attachment) also usable as skyhook; Anti-drop strap can be attached
  • Mechanical 2-speed transmission; Able to drill large diameter holes in low speed mode; Able to do drilling with 2-9/16" self-feed bit
  • High-speed drilling beyond AC tool
  • Powerful drilling even large diameter holes
  • Variable 2-speed (0-450 & 0-1,400 RPM) for increased drilling versatility

Specification



Thumbnail
Model NameDDA450Z
Product Name18V Cordless Angle Drill
CapacitySteel: 13 mm (1/2")
Wood (Auger Bit): 38 mm (1-1/2")
Wood (Hole Saw) Hi: 101 mm (4")
Wood (Hole Saw) Lo: 127 mm (5")
Wood (Self-Feed Bit) Hi: 50 mm (2")
Wood (Self-Feed Bit) Lo: 65 mm (2-9/16")
Chuck Capacity2 - 13 mm (1/16 - 1/2")
Max Fastening TorqueHigh: 26 N·m (230 in.lbs.)
Low: 70 N·m (620 in.lbs.)
No Load Speed (RPM)High: 0 - 1,400 | Low: 0 - 450
Dimensions (L x W x H)434 x 82 x 179 mm (17-1/8" x 3-1/4" x 7")
Net Weight3.2 - 3.5 kg (7.1 - 7.7 lbs.)
Work Amount125 holes with BL1860B
2 layer of SPF 2x10 plate

Standard Equipment
Chuck Key, Chuck Key Holder, Side Grip, Hook, (+) Screw

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
