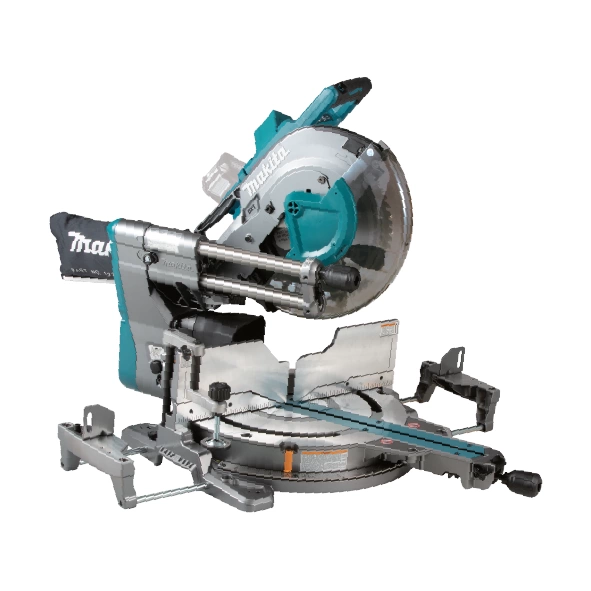

LS003GZ 305 mm (12")

40Vmax Cordless Slide Compound Miter Saw


Features


  • 40Vmax XGT BL AWS Cordless 305 mm (12") Slide Compound Miter Saw, LED Light
  • High power delivered by 40Vmax BL motor enables to cut as fast as if you were using a corded slide compound miter saw
  • Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
  • Increased capacity for up to 203 mm (8") crown molding (vertically nested), 171 mm (6-3/4") baseboard (vertical), and 382 mm crosscuts at 90°
  • Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity
  • Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)

Specification



Thumbnail
Model NameLS003GZ
Product Name40Vmax Cordless Slide Compound Miter Saw
Blade Diameter305 mm (12")
Hole Diameter25.4 mm (1")
AngleMiter: 60° L | 60° R
Bevel: 48° L | 48° R
Max Cutting Capacity0° Miter: 107 x 363 mm (4-1/4" x 14-1/4")
45° Miter, L/R: 107 x 255 mm (4-1/4" x 10")
No Load Speed (RPM)3,600
Dimensions (L x W x H)898 x 690 x 725 mm (35-1/4" x 27-1/4" x 28-1/2")
Net Weight30.5 - 31.1 kg (67.2 - 68.6 lbs.)
Work Amount70 Cuts with BL4040
Melapi Thickness 900 mm x Width 300 mm
90° Slide Cutting

* Recommended batteries 4.0Ah, 5.0Ah

Standard Equipment
TCT Saw Blade (B-67452), Dust Bag, Triangular Rule, Vertical Vise, Hex Wrench

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
