Product Detail
LS004GZ 260 mm (10-1/4")

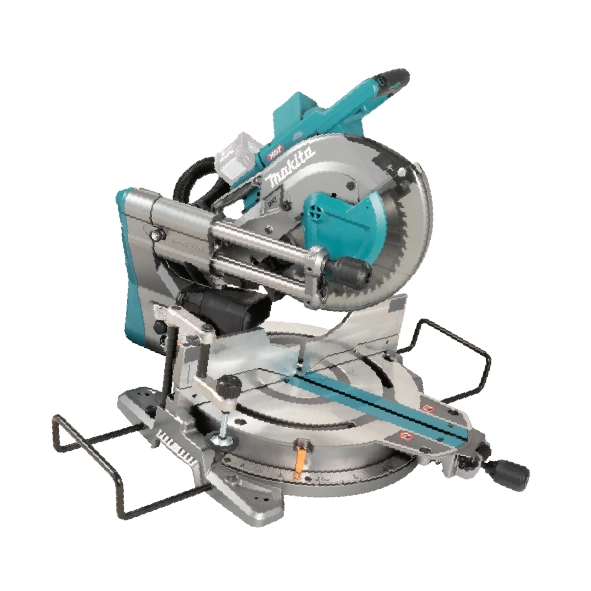

40Vmax Cordless Slide Compound Miter Saw
Features
- 40Vmax XGT BL AWS Cordless 260 mm (10-1/4") Slide Compound Miter Saw, LED Light
- High power delivered by 40Vmax BL motor enables to cut as fast as if you were using a corded slide compound miter saw
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Increased capacity for up to 168 mm (6-5/8") crown molding (vertically nested), 133 mm (5-1/4") baseboard (vertical), and 305 mm crosscuts at 90°
- Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity
- Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
Specification
| Thumbnail |  |
| Model Name | LS004GZ |
| Product Name | 40Vmax Cordless Slide Compound Miter Saw |
| Blade Diameter | 260 mm (10-1/4") |
| Hole Diameter | 25.4 mm (1") |
| Angle | Miter: 60° L | 60° R Bevel: 48° L | 48° R |
| Max Cutting Capacity | 0° Miter: 91 x 279 mm (3-5/8 x 11") 45° Miter, L/R: 91 x 197 mm (3-5/8 x 7-3/4") |
| No Load Speed (RPM) | 3,600 |
| Dimensions (L x W x H) | 805 x 644 x 660 mm (35-1/4 x 25-3/8 x 26") |
| Net Weight | 26.6 - 27.2 kg (58.6 - 60.0 lbs.) |
| Work Amount (approx.) | 110 cuts with BL4040 Melapi thickness 60 mm x width 300 mm 90° Slide cutting |
* Recommended batteries 4.0Ah, 5.0Ah
Standard Equipment
TCT Saw Blade, Dust Bag, Triangular Rule, Vertical Vise, Hex Wrench
Available Option
GZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
