Product Detail

TW007GM204/ GD202/ GZ02 12.7 mm (1/2")

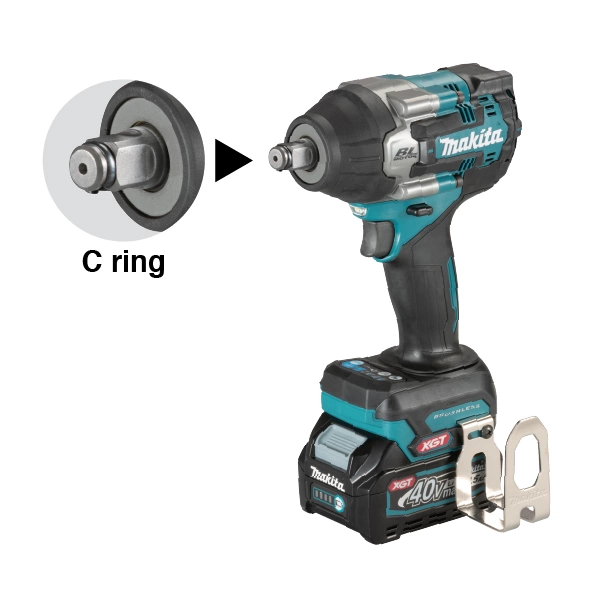

40Vmax Cordless Impact Wrench


Features


  • 40Vmax XGT BL Cordless 1/2" (12.7 mm) 760 N·m (560 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
  • Increased torque 760 N·m (560 ft.lbs.)
  • Increased nut busting torque 1,100 N·m (810 ft.lbs.)
  • 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
  • Trigger switch with full speed mode allows for less hand and finger fatigue
  • Convenient 1/2" (12.7 mm) square drive for quick socket changes

Specification



Thumbnail
Model NameTW007GM204/ GD202/ GZ02
Product Name40Vmax Cordless Impact Wrench
Fastening CapacitiesStandard Bolt: M10 - M24 (3/8 - 1")
High Strength Bolt (Grade 10.9): M10 - M16 (3/8" - 5/8")
High Strength Bolt (Grade F10T):
M12, M16 (7/16, 5/8")
Square Drive12.7 mm (1/2")
Nut-Busting Torque1,100 N·m (810 ft.lbs.)
Impacts Per Minute (IPM)Max: 0 - 2,900 | Hard: 2,700
Mid: 0 - 1,900 | Soft: 0 - 1,200
Max Fastening Torque760 N·m (560 ft.lbs.)
No Load Speed (RPM)Max: 0 - 2,300 | Hard: 0 - 1,900
Mid: 0 - 1,200 | Soft: 0 - 600
Dimensions (L x W x H)170 x 86 x 285 mm (6-11/16 x 3-3/8 x 11-1/4")
Net Weight2.7 - 3.3 kg (6.0 - 7.3 lbs.)
Work Amount460 pcs with BL4040 x2
Tightening of M16 bolts

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Belt Clip, Ring Set with Shoulder Belt

Available Options
GM204: 1x Fast Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box
GD202: 1x Fast Charger, 2x 2.5Ah Battery, 1x Makpac Connector Box
GZ02: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
