Product Detail

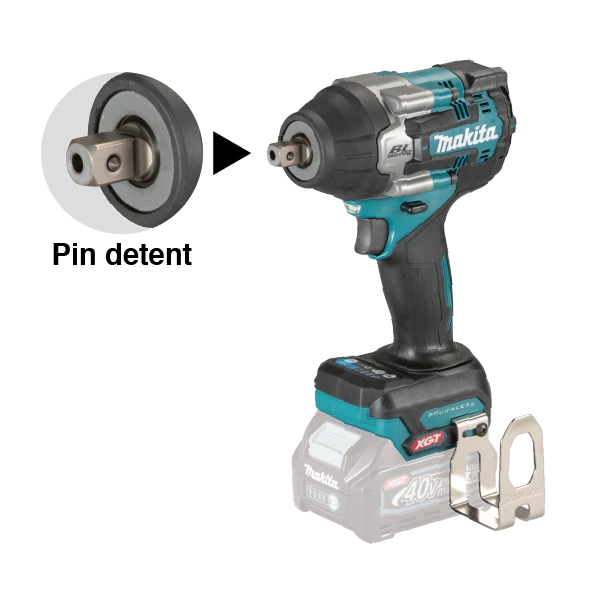

TW008GZ 12.7 mm (1/2")

40Vmax Cordless Impact Wrench


Features


  • 40Vmax XGT BL Cordless 1/2" (12.7 mm) 760 N·m (560 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
  • Increased torque 760 N·m (560 ft.lbs.)
  • Increased nut busting torque 1,100 N·m (810 ft.lbs.)
  • 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
  • Compact design with a short overall length of 170 mm (6-11/16")
  • Convenient 1/2" (12.7 mm) square drive for quick socket changes

Specification



Thumbnail
Model NameTW008GZ
Fastening CapacitiesStandard Bolt: M10 - M24 (3/8 - 1")
High Strength Bolt (Grade 10.9): M10 - M16 (3/8" - 5/8")
High Strength Bolt (Grade F10T):
M12, M16 (7/16, 5/8")
Product Name40Vmax Cordless Impact Wrench
Square Drive12.7 mm (1/2")
Nut-Busting Torque1,100 N·m (810 ft.lbs.)
Impacts Per Minute (IPM)Max: 0 - 2,900 | Hard: 2,700
Mid: 0 - 1,900 | Soft: 0 - 1,200
Max Fastening Torque760 N·m (560 ft.lbs.)
No Load Speed (RPM)Max: 0 - 2,300 | Hard: 0 - 1,900
Mid: 0 - 1,200 | Soft: 0 - 600
Dimensions (L x W x H)170 x 86 x 285 mm (6-11/16 x 3-3/8 x 11-1/4")
Net Weight2.7 - 3.3 kg (6.0 - 7.3 lbs.)

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Belt Clip

Available Option
GZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
