Product Detail
Features
- Rotatable dust nozzle; Added two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation
- Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° - 48°) with a positive stop at 22.5°
- Precision accurate cutting delivers a splinter-free mirror finish
- Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm
- Variable speed dial control (2,500 - 4,900 RPM) for optimum performance in a variety of materials
- Easy to set depth adjustment with large scale
Specification
Thumbnail | |
Model Name | SP001GZ02 |

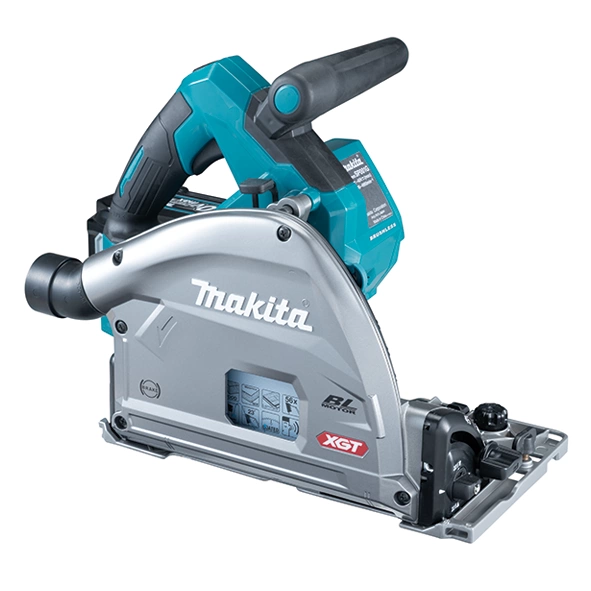

Product Name | 40Vmax Cordless Plunge Cut Saw |
Blade Diameter | 165 mm (6-1/2") |
Hole Diameter | 20 mm (13/16") |
Bevel Capacity | -1° - 48° |
Max Cutting Capacity | 0°: 56 mm (2 - 3/16") 45°: 0 - 40 mm (1 - 9/16") 48°: 38 mm (1 - 1/2") |
No Load Speed (RPM) | 2,500 - 4,900 |
Dimensions (L x W x H) | 347 x 221 x 271 mm (13-5/8 x 8-3/4 x 10-5/8") |
Net Weight | 4.4 - 5.0 kg (9.7 - 11.0 lbs.) |
Work Amount (approx.) | 150 cuts with BL4040 Kitchen board (Laminated wood) Thickness 40 mm x width 600 mm 0° cutting |
* Recommended batteries 2.5Ah, 4.0Ah, 5.0Ah
Standard Equipment
TCT Saw Blade (B-57364), Hex Wrench
Available Option
GZ02: With 1x Makpac Connector Box, Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
