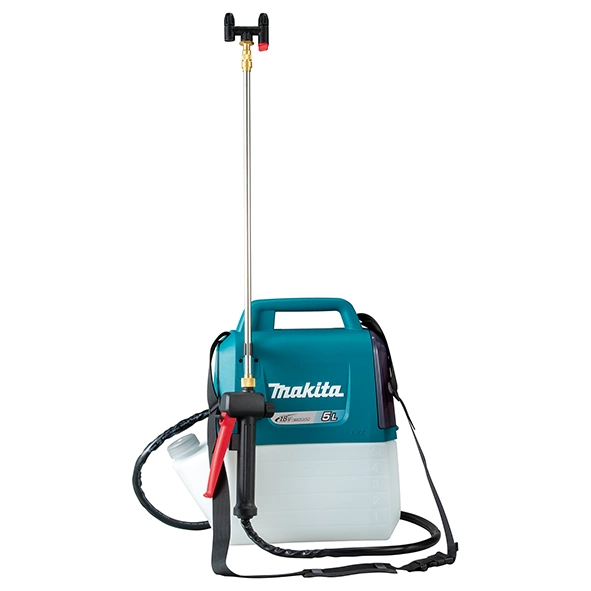

18V Cordless Garden Sprayer


  • H-shaped double head nozzle
  • Single/double head spraying selectable
  • 2-mode selectable (Mist and Stream modes)
  • Double head spraying enables wide area spraying; Nozzle heads are rotatable
  • Mist mode is optimal for spraying near plants
  • Stream mode is optimal for watering/fertilizing plants, e.g. trees located a little away from the user
  • Telescopic spray wand; Adjustable by loosening the lock nut
  • Paddle switch under the grip of spray wand allows for easy on/off control of spraying and is equipped withlock-on button for continuous spraying
  • Compatible with Round nozzle ULV5
  • Battery pops out for easy removal simply by pushing the hook of the battery
  • IP54-rated dust and shower-proof construction
  • 3-LED fuel gauge
  • 5L large capacity tank; Both sides are ergonomically curved to fit user's body when the sprayer hangs fromthe shoulder, increasing user's productivity
  • 1.7m Hose allows for operation with the sprayer on the ground and does not rub the ground when the sprayerhangs from the shoulder



Model NameDUS054Z
Product Name18V Cordless Garden Sprayer
Max Pressure0.3 MPa (3 kgf/cm²)
Chemical Tank5 L
Spray Wand Length0.5 - 0.7 m
Nozzle Mounting ThreadG 1/4
Hose Length1.7 m
Dimensions (L x W x H)343 x 182 x 368 mm (13-1/2 x 7-1/8 x 14-1/2")
Net Weight3.2 - 3.5 kg (7.1 - 7.7 lbs.)
Work Amount170 L (Double Outlet Mist)
110 L (Single Outlet Mist)
205 L (Double Outlet Stream)
140 L (Single Outlet Stream)
with BL1830B

Standard Equipment
H-Shaped Double Head Nozzle, Spray Wand, Spray Wand Holder, Shoulder Belt

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
