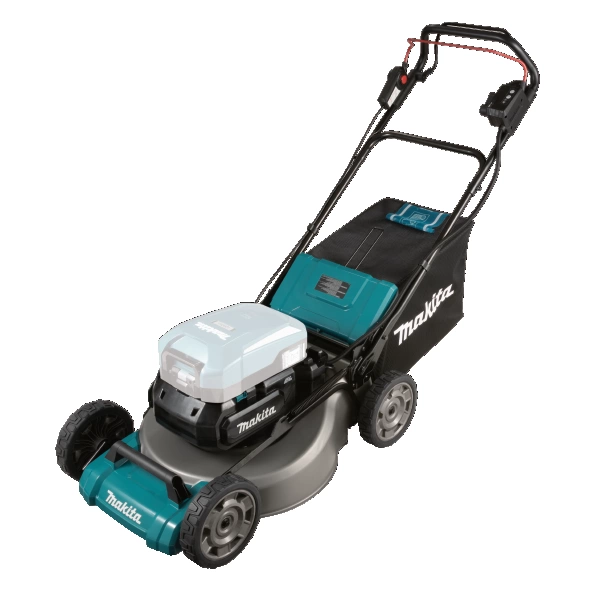

40Vmax Battery Powered Lawn Mower


  • Powered by 36V high power drive system using Makita portable power pack PDC01 or PDC1200 for long continuous mowing
  • Mows 6,900 m² with PDC1200; 2,300 m² with PDC01 (BL1860B x4)
  • 3 modes (normal / soft no-load / noise reduction)
  • Enhanced rigidity of handle withstands the same hard use as engine lawn mowers
  • Self-propelled type (with variable speed control); On/off switch lever for self-propelled function; Self-propelledspeed (2.5-5.0 km/h); With speed control lever; The same high acceleration as engine lawn mowers
  • Noise reduction mode provides rotation speed (2,300 RPM) by constant speed control
  • Battery fuel gauge is conveniently located for user visibility
  • Soft start minimizes start-up shock, and makes the machine start smoothly
  • 3 in 1 (Lawnmowing / Grass collecting / Mulching)
  • Equipped with side discharge
  • Grass box with grass level indicator



Model NameLM001CZ
Product Name40Vmax Battery Powered Lawn Mower
Cutting Width534 mm (21")
Cutting Height20 - 100 mm (13/16" - 3-15/16")
Grass Box Capacity70 L
Max Output1,600 W
Blade Hole Diameter10.0 mm (3/8")
No Load Speed (RPM)2,300 - 2,800
Dimensions (L x W x H)1,630-1,715 x 590 x 990-1,095 mm
(64-67-1/2 x 23-1/4 x 39"-43")
Net Weight39.0 - 42.8 kg (86.0 - 94.4 lbs.)
Continuous Use (min)40 min (self-propelled) | 50 min (push-drive)
with PDC01 (BL1860B x 4), 2-Tooth Blade
120 min (self-propelled) | 150 min (push-drive)
with PDC1200, 2-Tooth Blade

Standard Equipment
Blade, Mulch Plug, Side Discharge Mouth, Box Wrench, Rod

Available Option
CZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
