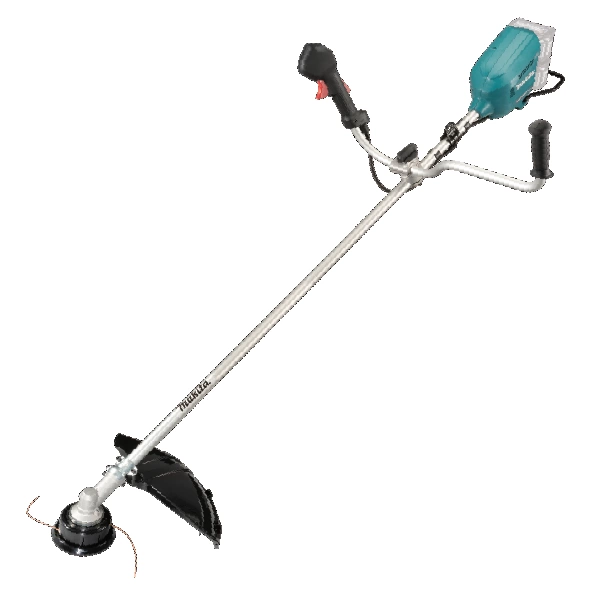

40Vmax X2 Cordless Grass Trimmer


  • Applicable to heavy-duty operation due to high output power similar to 40 mL class engine grass trimmers
  • Toolless handle holder for comfortable operation and compact storage
  • Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimumperformance
  • Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
  • Rear end mounted motor makes the tool balance similar to engine grass trimmers
  • Constant speed control minimizes reduction in rotation speed under load
  • 3-speed options (Low / Medium / High) allows the operator to match speed to application
  • Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads
  • Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds



Model NameUR012GZ02
Product Name40Vmax X2 Cordless Grass Trimmer
Cutting WidthMetal Blade: 305 mm (12")
Chisel Blade: 225 mm (8-7/8")
Shredder Blade: 270 mm (10-5/8")
TCT Saw Blade: 255 mm (10")
Nylon Cutting Head: 480 mm (18-7/8")
Plastic Blade: 305 mm (12")
Spindle SizeM10 x 1.25 LH
Max Output2,000 W
No Load Speed (RPM)Metal Blade/ Plastic Blade (305 mm):
High: 0 - 6,800 | Mid: 0 - 5,000 | Low: 0 - 3,500
Nylon Cutting Head:
High: 0 - 5,000 | Mid: 0 - 4,200 | Low: 0 - 3,500
Dimensions (L x W x H)1,790 x 680 x 590 mm (70-1/2 x 26-3/4 x 23-1/4")
Net Weight8.0 - 9.3 kg (17.6 - 20.5 lbs.)
Continuous Use (min)Low: 126 | Mid: 84 | High: 56
With BL4050F x2 (Metal Blade)

* Recommended batteries 5.0Ah

Standard Equipment
Safety Goggles, Metal Blade, Nylon Cutting Head, Plastic Blade, Accessory Bag, Hex Wrench, Box Wrench, Shoulder Belt

Available Option
GZ02: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
