FN001GD101/ GZ

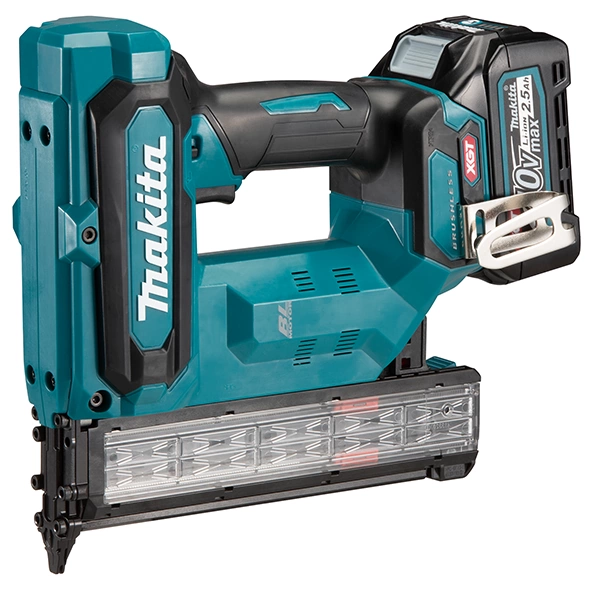

40Vmax Cordless Brad Nailer


  • Cordless for increased convenience; eliminates the need for a compressor and air hose
  • Trigger-lock button minimizes accidental start up
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Quick firing thanks to BL motor
  • BL motor quickly re-compresses the spring for next firing
  • Slim nose enables to drive nails securely into groove of narrow baseboard like 4 mm
  • Contact arm mechanism enables "continuous nailing" and "drag nailing"
  • Anti-dry fire mechanism engineered to minimize driving blanks and damage to work surface
  • Toolless depth adjustment for precise flush and countersink finish
  • Built-in LED light illuminates the work area



Model NameFN001GD101/ GZ
Product Name40Vmax Cordless Brad Nailer
CapacityLength: 15 - 40 mm (5/8 - 1-5/8")
Gauge: 18 Ga
Magazine Capacity100
Dimensions (L x W x H)265 x 86 x 243 mm (10-3/8 x 3-3/8 x 9-9/16")
Net Weight2.6 - 3.2 kg (5.7 - 7.1 lbs.)
Work Amount5000 pcs with BL4025

* Recommended batteries 2.0Ah, 2.5Ah

Standard Equipment
Safety Goggles, Nose Adapter, Hex Wrench, Belt Clip

Available Options
GD101: 1x Fast Charger, 1x 2.5Ah Battery
GZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
