Product Detail

HM001GM202/ GZ

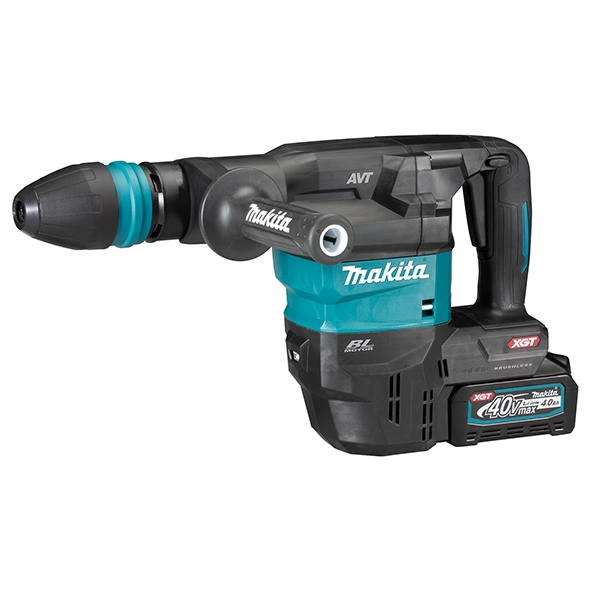

40Vmax Cordless Demolition Hammer


  • Anti-Vibration Technology (AVT) ensures extra-low vibration performance
  • Auto-start Wireless System (AWS) connects to compatible
  • Twin LED lights with preglow and afterglow functions for better illumination
  • 5-stage max speed selection by dial with variable control by trigger in each range enables user to match the speed to the application for greater versatility
  • 12 bit angle settings allow the bit to be set at different positions for operating convenience
  • One-touch sliding chuck for easy bit changes
  • Rubberized ergonomic soft grip can be installed on either side of the tool for increased operator convenience
  • Trigger lock-on/lock-off can be set simply by pushing the slide lever



Model NameHM001GM202/ GZ
Product Name40Vmax Cordless Demolition Hammer
Impact EnergyEPTA-Procedure 05/2009: 9.4 J
Shank Diameter18 mm (11/16")
Impacts Per Minute (IPM)0 - 2,650
Dimensions (L x W x H)481 x 113 x 258 mm (19 x 4-7/16 x 10-1/8")
Net Weight6.3 - 7.1 kg (13.9 - 15.7 lbs.)
Work Amount13.6 kg with BL4040
Concrete Grade 40 N/mm²

* Recommended batteries 4.0Ah, 5.0Ah

Standard Equipment
Bit Grease (194683-7), Side Grip, Cloth

Available Options
GM202: 1x Fast Charger, 2x 4.0Ah Battery
GZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
