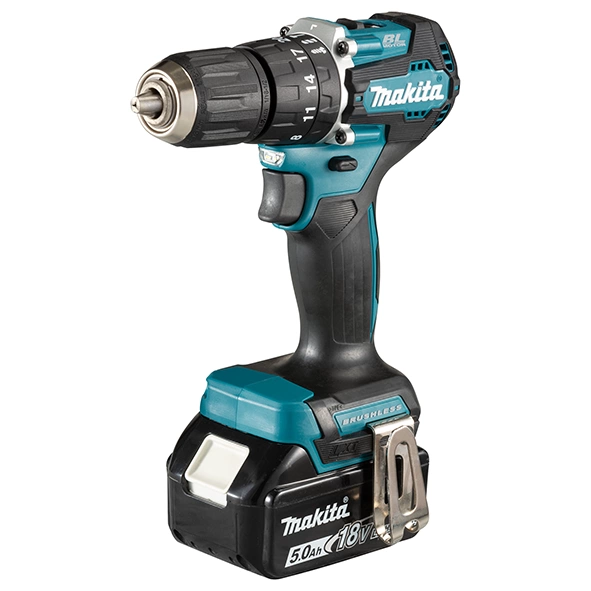

DHP487RAJ/ Z 13 mm (1/2")

18V Cordless Hammer Driver Drill


Features


  • Compact design at only 164 mm long for increased operability
  • Aluminum diecast cover around gear housing case creates the impression of rigidity of the machine
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
  • 0-25,500 IPM for fast hammer drilling in masonry materials

Specification



Thumbnail
Model NameDHP487RAJ/ Z
Product Name18V Cordless Hammer Driver Drill
CapacitySteel: 13 mm (1/2")
Masonry: 13 mm (1/2")
Wood (Self-Feed Bit): 35 mm (1-3/8")
Wood (Auger Bit): 36 mm (1-7/16")
Wood (Hole Saw): 51 mm (2")
Chuck Capacity1.5 - 13 mm (1/16 - 1/2")
Impacts Per Minute (IPM)High: 0 - 25,500
Low: 0 - 7,500
No Load Speed (RPM)High: 0 - 1,700 | Low: 0 - 500
Max Fastening TorqueHard: 40 N·m (350 in.lbs.) | Soft: 25 N·m (220 in.lbs.)
Max Lock Torque40 N·m (350 in.lbs.)
Dimensions (L x W x H)164 x 81 x 248 mm (6-1/2 x 3-3/16 x 9-3/4")
Net Weight1.4 - 1.7kg (3.1 - 3.7lbs.)
Work Amount640 holes with BL1820B
Wood Bit Ø 9 mm (30 mm Thick Melapi) High Speed

Standard Equipment
Belt Clip, (+)(-) Bit (784637-8)

Available Options
RAJ: 1x Rapid Charger, 2x 2.0Ah Battery, 1x Makpac Connector Box
Z: Without Charger, Battery & Carrying Case

* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
