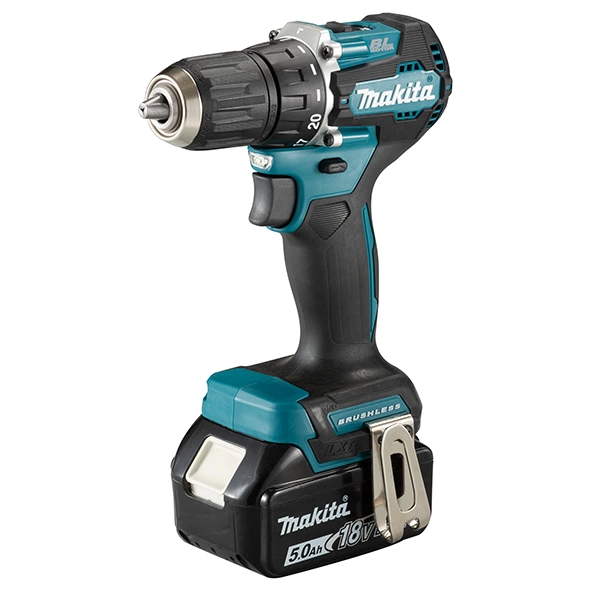

DDF487RAJ/ Z 13 mm (1/2")

18V Cordless Driver Drill


  • Compact design at only 150 mm long for increased operability
  • Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling and fastening applications
  • BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • BL motor delivers 40 N·m (350 in.lbs.) of max torque



Model NameDDF487RAJ/ Z
Product Name18V Cordless Driver Drill
CapacitySteel: 13 mm (1/2")
Wood (Hole Saw): 51 mm (2")
Wood (Self-Feed Bit): 35 mm (1-3/8")
Wood (Auger Bit): 36 mm (1-7/16")
Max Fastening TorqueHard: 40 N·m (350 in.lbs.) | Soft: 25 N·m (220 in.lbs.)
Max Lock Torque40 N·m (350 in.lbs.)
No Load Speed (RPM)High: 0 - 1,700 | Low: 0 - 500
Dimensions (L x W x H)150 x 81 x 248 mm (5-7/8 x 3-3/16 x 9-3/4")
Net Weight1.3 - 1.6 kg (2.9 - 3.5 lbs.)
Work Amount640 holes with BL1820B
Wood Bit Ø 9 mm (30 mm Thick Melapi) High Speed

Standard Equipment
Belt Clip, (+)(-) Bit (784637-8)

Available Options
RAJ: 1x Rapid Charger, 2x 2.0Ah Battery, 1x Makpac Connector Box
Z: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
