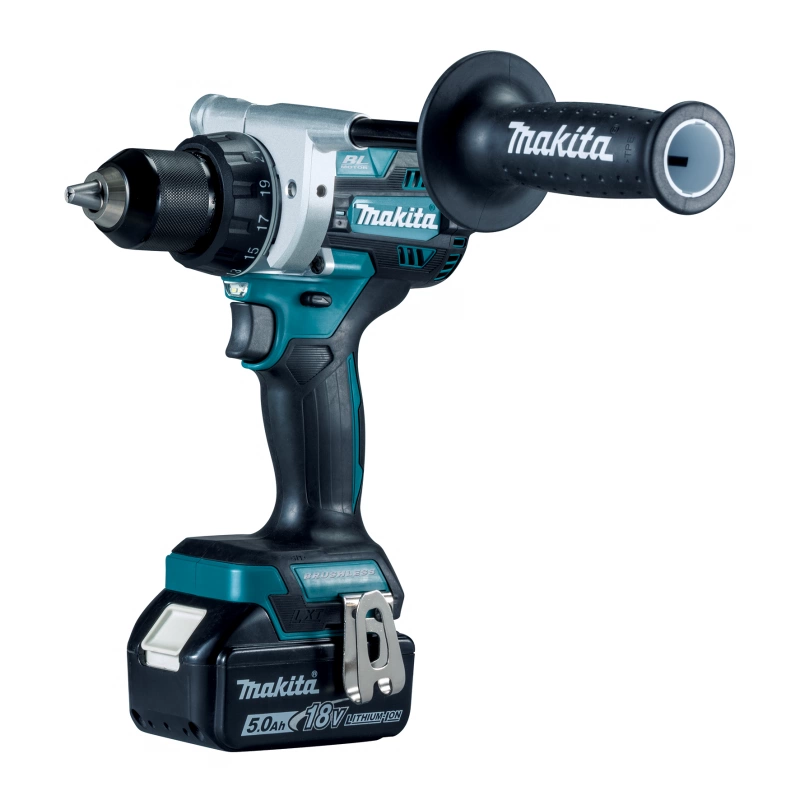

DDF486RTE/ Z 13 mm (1/2")

18V Cordless Driver Drill


  • Compact and ergonomic design at only 178 mm long
  • BL motor delivers 125 N·m of max torque
  • All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening andhammer drilling applications
  • All metal gears and gear housing for maximum job site durability
  • All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
  • Lightweight for reduced operator fatigue
  • 21 clutch settings and drill mode for added fastening control
  • 3-stage LED gauge indicates battery charge level



Model NameDDF486RTE/ Z
Product Name18V Cordless Driver Drill
CapacitySiding Board: 170 mm (6-11/16")
Wood (Auger-Bit): 50 mm (2")
Wood (Hole Saw): 152 mm (6")
No Load Speed (RPM)High: 0 - 2,100 | Low: 0 - 550
Max Fastening TorqueHard: 130 N·m (1,150 in.lbs.) |
Soft: 65 N·m (580 in.lbs.)
Max Lock Torque125 N·m (1,100 in.lbs.)
Dimensions (L x W x H)178 x 81 x 265 mm (7 x 3-3/16 x 10-3/8")
Net Weight2.3 - 2.6 kg (5.1 - 5.7 lbs.)

Standard Equipment
Side Handle, Belt Clip, (+)(-) Bit, Bit Holder

Available Options
RTE: 1x Rapid Charger, 2x 5.0Ah Battery
Z: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
