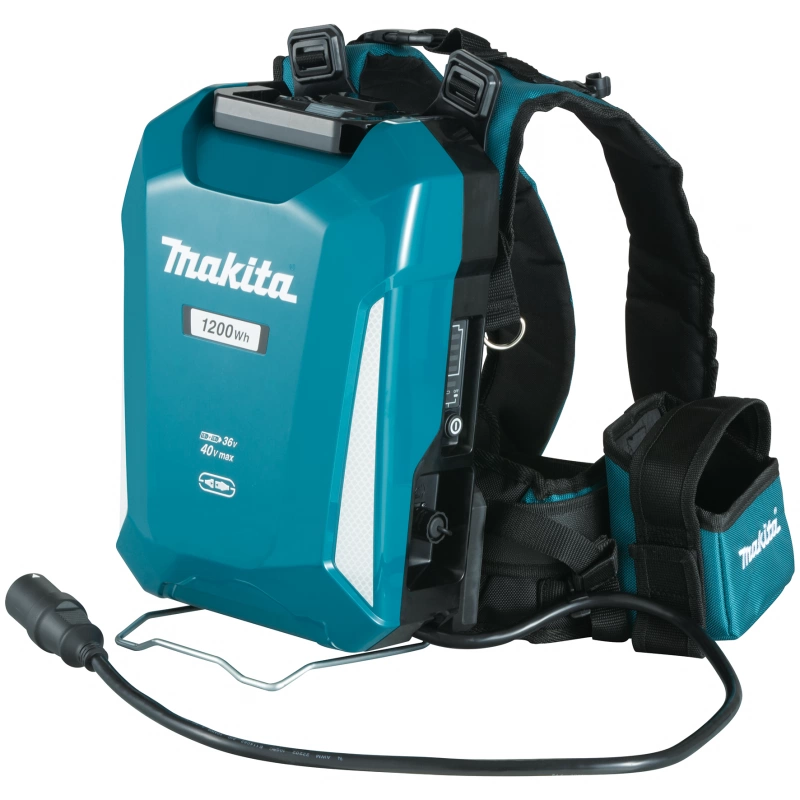

• Our first over 1,000 Wh energy capacity battery
  • Equipped with built-in battery cells
  • Compatible with 18Vx2 LXT, 40Vmax XGT, 36V direct power connection
  • Quickly removable harness allows for use as a stationary power pack
  • Height-adjustable waist belt for personal fit and comfort
  • Main power switch with 8-hour auto-off function
  • 4-LED fuel gauge indicates the battery status by four green LEDs
  • Wet Guard/ IPX4 compatible when used with the compatible tool
  • Intermediate connector between power tool and PDC1200 is automatically disconnected, if the cord frompower tool is loaded with a certain weight or over



Model NamePDC1200
Product NamePortable Power Pack
Capacity33.5 Ah
Energy Capacity1,206 Wh
Power Supply CordBattery Side: 1.1 m (3.6 ft)
Adapter Side: 0.6 m (2.0 ft)

Available Option
PDC1200A01 included 18Vx2 Adapter (Part No. 191J51-5), DC4001 Battery Charger Set (Part No. 191L01-2), Harness Assembly (127668-8)

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
