Product Detail

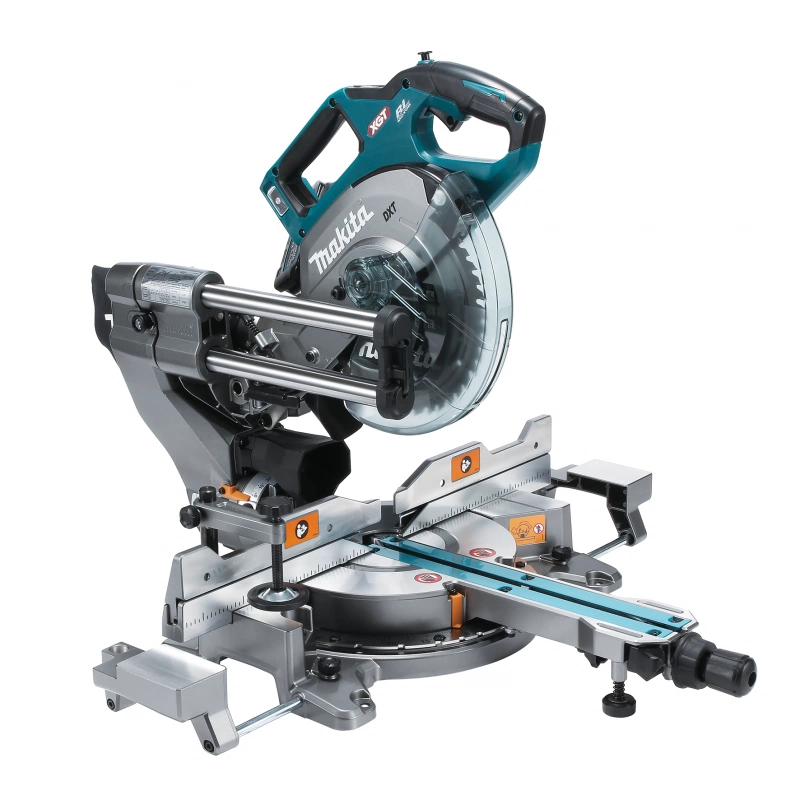

LS002GZ 216 mm (8-1/2")
40Vmax Cordless Slide Compound Miter Saw
Features
- Switch to start up vacuum cleaner (via AWS) convenient for cleaning after working with this tool
- Rail-forward design enables to be placed against a wall for maximizing work space
- LED lamp to cast an exact cutting line
- Extendable sub tables help stabilize long material cuts
- Constant speed control as stable as that of AC tools
- Equipped with BL motor, allowing for smooth cutting
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Bevel range of 48° right and left
- Single sliding system enables smooth operation to produce superior cuts
Specification
| Thumbnail |  |
| Model Name | LS002GZ |
| Product Name | 40Vmax Cordless Slide Compound Miter Saw |
| Blade Diameter | 216 mm (8-1/2") |
| Hole Diameter | 25.4 mm (1") |
| Angle | Miter: 60° L | 60° R Bevel: 48° L | 48° R |
| Max Cutting Capacity | (Bevel 45°L/ Miter 45°LR) 50 x 220 mm (2 x 8-5/8") (Bevel 45°L/ Miter 0°) 50 x 312 mm (2 x 12-1/4") (Bevel 45°R/ Miter 45°LR) 30 x 220 mm (1-3/16 x 8-5/8") (Bevel 45°R/ Miter 0°) 30 x 312 mm (1-3/16 x 12-1/4") (Bevel 0°/ Miter 45°LR) 70 x 220 mm (2-3/4 x 8-5/8") (Bevel 0°/ Miter 0°) 70 x 312 mm (2-3/4 x 12-1/4") (Bevel 0°/ Miter 60°R) 70 x 155 mm (2-3/4 x 6-1/8") |
| No Load Speed (RPM) | 4,800 |
| Dimensions (L x W x H) | 702 x 551 x 557 mm (27-5/8 x 21-3/4 x 22") |
| Net Weight | 16.4 - 17.0 kg (36.2 - 37.6 lbs.) |
| Work Amount (approx.) | 170 cuts with BL4040 Melapi thickness 60 mm x width 250 mm 90° Slide cutting |
* Recommended batteries 2.5Ah, 4.0Ah, 5.0Ah
Standard Equipment
Efficut TCT Saw Blade (E-07010), Dust Bag, Triangular Rule, Vertical Vise, Hex Wrench
Available Option
GZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
