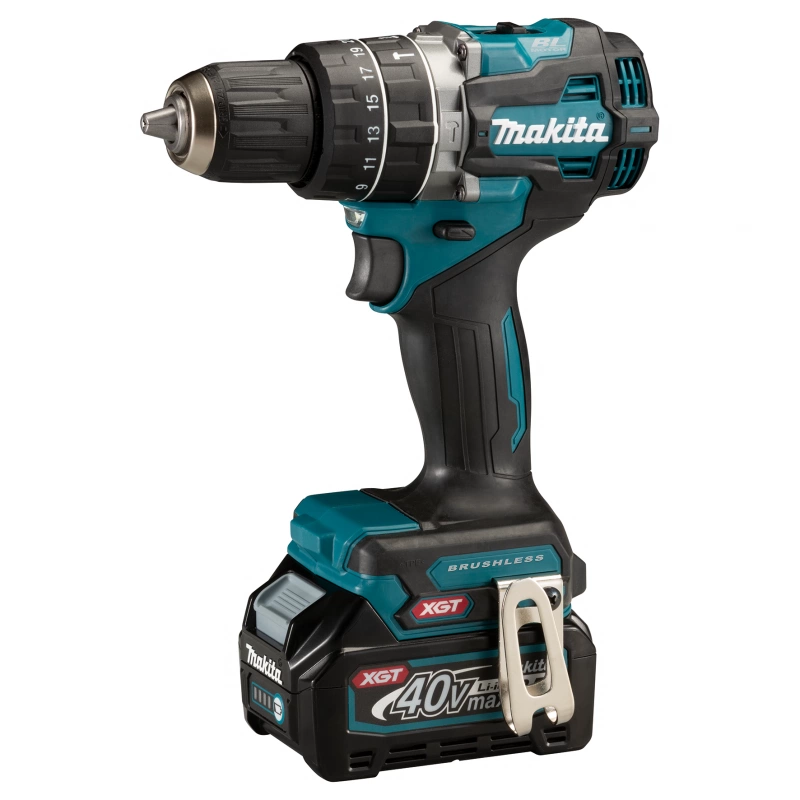

HP002GD201/ GA201/ GZ 13 mm (1/2")

40Vmax Cordless Hammer Driver Drill


Features


  • Aluminum gear housing creates the impression of rigidity of the machine
  • Variable 2-speed (0-600 & 0-2,200 RPM) for a wide range of drilling, fastening and hammer drillingapplications
  • 0-33,000 IPM for fast hammer drilling in masonry materials
  • BL motor delivers 65 N·m (580 in.lbs.) of max torque
  • Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
  • Convenient 13 mm (1/2") keyless chuck for quick bit changes
  • 21 clutch settings and drill mode for added fastening control
  • Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed modefor heavy duty applications requiring high torque

Specification



Thumbnail
Model NameHP002GD201/ GA201/ GZ
Product Name40Vmax Cordless Hammer Driver Drill
CapacityWood (Hole Saw): 51 mm (2")
Wood (Auger Bit): 38 mm (1-1/2")
Steel: 13 mm (1/2")
Masonry: 13 mm (1/2")
Clutch Torque Setting1.0 - 5.0N·m (9 - 44 in.lbs.)
Impacts Per Minute (IPM)High: 0 - 33,000 | Low: 0 - 9,000
No Load Speed (RPM)High: 0 - 2,200 | Low: 0 - 600
Max Fastening TorqueHard: 64 N·m (570 in.lbs.) | Soft: 30 N·m (270 in.lbs.)
Max Lock Torque65 N·m (580 in.lbs.)
Dimensions (L x W x H)174 x 86 x 272 mm (6-7/8 x 3-3/8 x 10-3/4")
Net Weight2.0 - 2.6 kg (4.4 - 5.7 lbs.)

Standard Equipment
(+)(-) Bit, Belt Clip

Available Options
GD201: 1x Fast Charger, 2x 2.5Ah Battery
GA201: 1x Standard Charger, 1x 2.0Ah Battery
GZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
