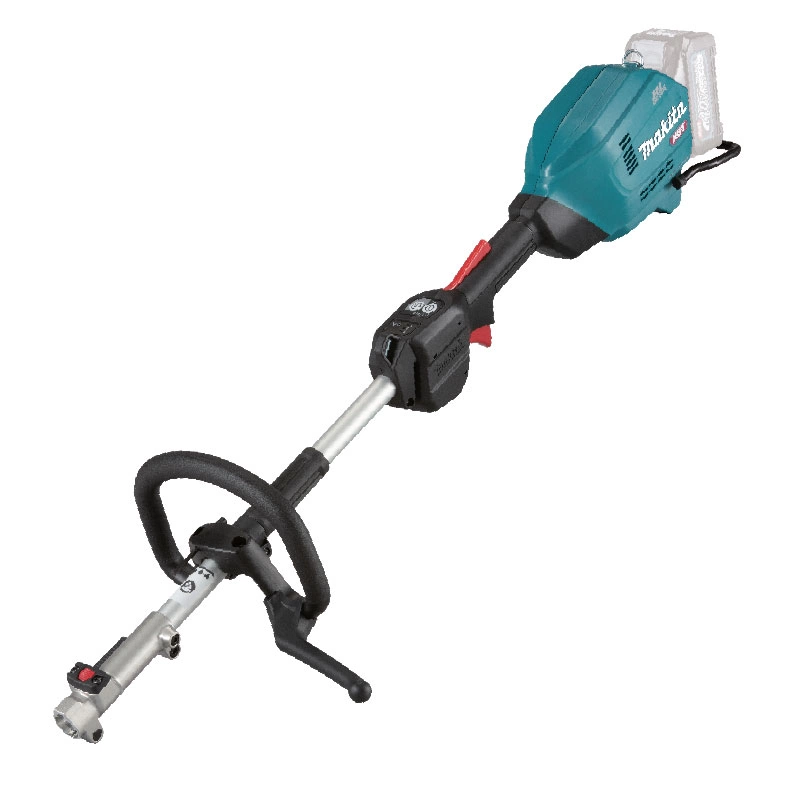

40Vmax Cordless Multi Function Power Head


  • BL motor and the XGT battery deliver much higher power than the current model DUX60, and enables use in a wider range of applications
  • WetGuard and IPX4; Excellent water-resistant performance
  • Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows
  • High/Medium/Low 3-speed selection and variable speed control by trigger
  • Multi-tool system consisting of power head and versatile optional attachments is ideal for a wide range of applications
  • Electric brake stops the motor rotation gently but fast, allowing user to quickly resume operation



Model NameUX01GZ
Product Name40Vmax Cordless Multi Function Power Head
Max Output1.0 kw
No Load Speed (RPM)High: 0 - 9,700
Medium: 0 - 8,200
Low: 0 - 5,700
Dimensions (L x W x H)1,001 x 320 x 209 mm (39-1/2 x 12-5/8 x 8-1/4")
Net Weight4.2 - 4.8 kg (9.3 - 10.6 lbs.)

Standard equipment
Shoulder Harness, Hex Wrench, Safety Goggles (195246-2), Accessory Bag

Available options
GZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
