Product Detail
Features
- Drilling efficiency drastically increased by redesigned hammering mechanism
- Anti-Vibration Technology (AVT) for low vibration
- Powerful yet with low vibration due to 2 Counterweights, Anti-vibration rear handle and Anti-vibration side grip yet maintaining high power
- Anti-vibration side grip absorbs excess vibration beyond the canceling capacity of the two counterweights
- Anti-vibration rear handle; Vibration absorbing performance is increased by two cushion rings added to connecting parts
- Powerful 1,050 W motor delivers 3.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only"
Specification
| Thumbnail |  |

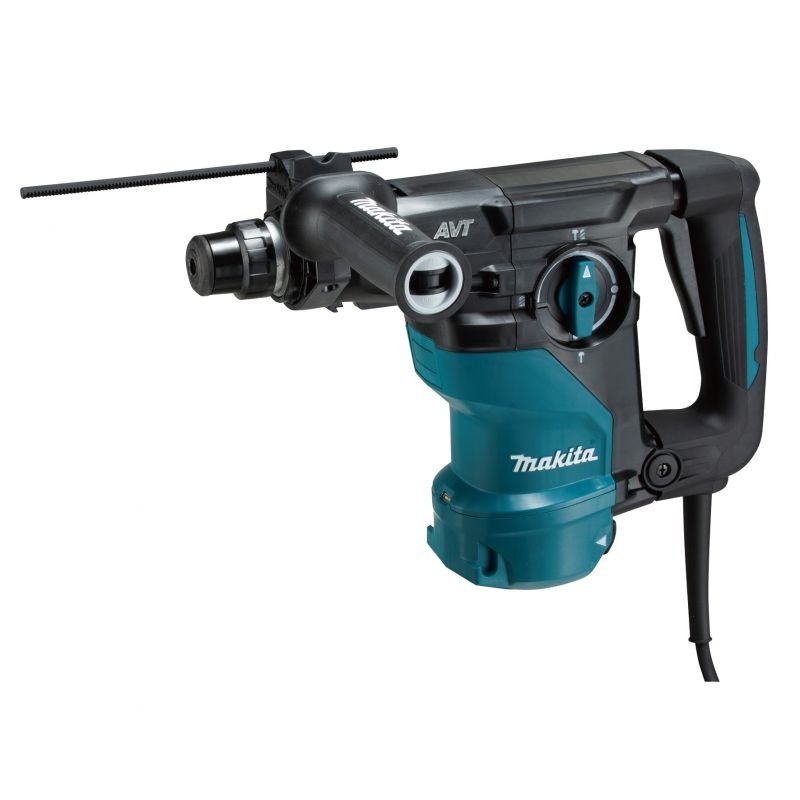

| Model Name | HR3011FCJ |
| Product Name | Combination Hammer |
| Impact Energy | EPTA-Procedure 05/2009: 3.9 J Our experimental conditions: 4.5 J |
| Capacity | Concrete (Core Bit): 80 mm (3-1/8") Concrete (Diamond Core Bit): 80 mm (3-1/8") Concrete (TCT Bit): 30 mm (1-3/16") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4") |
| Impacts Per Minute (IPM) | 0 - 4500 |
| Dimensions (L x W x H) | 369 x 98 x 242 mm (14-1/2 x 3-7/8 x 9-1/2") |
| Net Weight | 4.4 - 4.8 kg (9.7 - 10.6 lbs.) |
| Power Supply Cord | 4.0 m (13.1 ft) |
Standard Equipment
Depth Gauge, Side Grip
Depth Gauge, Side Grip
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
