Product Detail
TW005GD201/ GZ 12.7 mm (1/2")

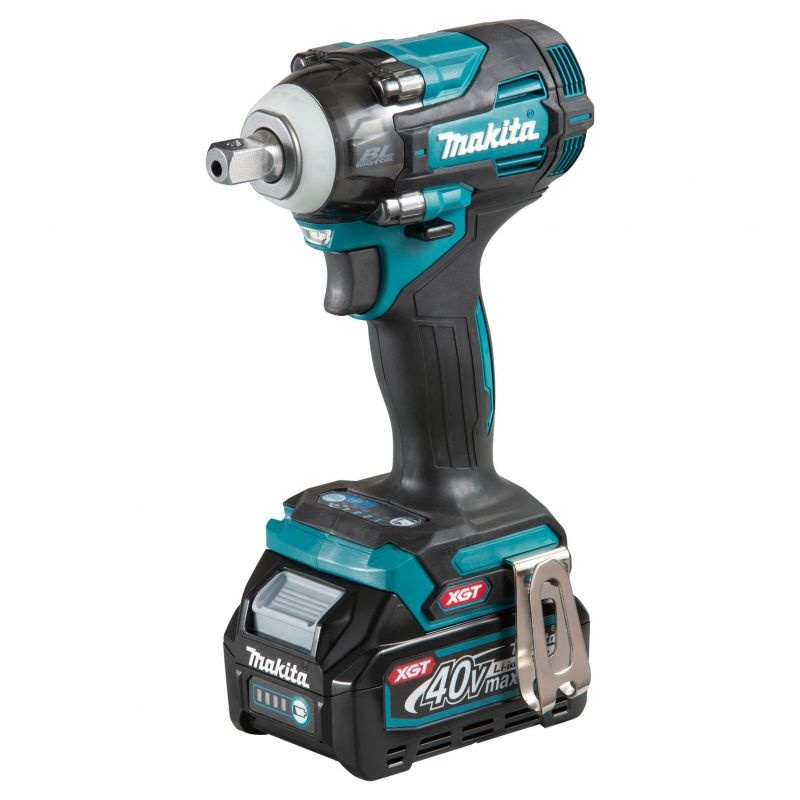

40Vmax Cordless Impact Wrench
Features
- Electronic 4 stage impact power selection for added versatility
- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
- Trigger switch with full speed mode allows for less hand and finger fatigue
- Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
- Style of socket retention: Pin detent
- Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Specification
| Thumbnail |  |
| Model Name | TW005GD201/ GZ |
| Fastening Capacities | Standard Bolt: M10 - M20 (3/8 - 3/4") High Strength Bolt: M10 - M16 (3/8, 5/8") |
| Nut-Busting Torque | 630 N·m (465 ft. lbs.) 2,050 N·m (1,510 ft. lbs.) |
| Square Drive | 12.7 mm (1/2") Pin Detent |
| Product Name | 40Vmax Cordless Impact Wrench |
| Impacts Per Minute (IPM) | 0-4,000 | 0-3,400 | 0-2,600 | 0-1,800 |
| Max Fastening Torque | 350 N·m (260 ft. lbs.) |
| No Load Speed (RPM) | 0-3,200 | 0-2,600 | 0-1,800 | 0-1,000 |
| Dimensions (L x W x H) | 144 x 86 x 248 mm (5-5/8 x 3-3/8 x 9-3/4") |
| Net Weight | 1.9 - 2.2kg (4.2 - 4.9lbs.) |
| Work Amount (approx.) | 560 pcs with BL4025 x2 Continuous tightening of M16 bolt |
* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah
Standard Equipment
Belt Clip, Tool Hanger Set (191K57-9)
Available Options
GD201: 1x Fast Charger, 2x 2.5Ah Battery, 1x Makpac Connector Box
GZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
