Product Detail
Features

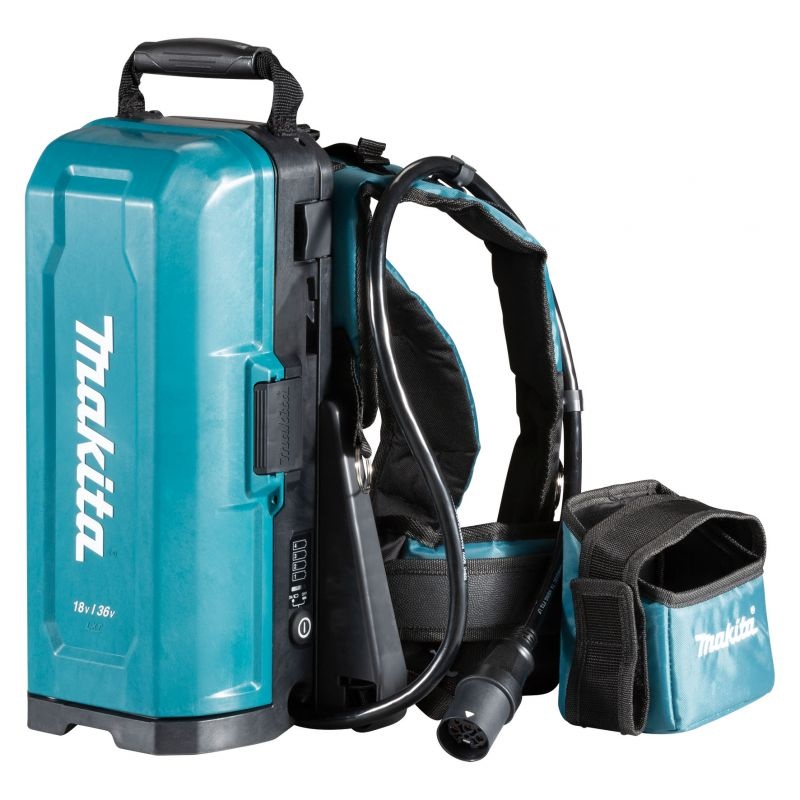

- "Simple" Portable Power Supply Unit powered by multiple LXT batteries.
- The user of 18V LXT batteries can get longer run time at less cost.
- Compatible with two LXT platforms; 18V LXT and 18V x2 LXT.
- Also can be used as a stationary power pack by detaching the backpack harness.
- Tool adapter with pivoting cord; designed for use with a variety of tools; increases the maneuverability of a connected tool.
- Height-adjustable waist belt; the position of the waist belt can be adjusted for personal fit and comfort.
Specification
| Thumbnail |  |
| Model Name | PDC01 |
| Energy Capacity | 432 Wh (BL1860B x 4) |
| Product Name | Portable Power Pack |
| Capacity | 24 / 12 Ah |
| Dimensions (L x W x H) | without Harness 400 x 195 x 132 mm (15-3/4 x 7-5/8 x 5-3/16") with Harness 400 x 270 x 149 mm (15-3/4 x 10-5/8 x 5-7/8") |
| Net Weight | 2.8 kg (6.1 lbs) |
| Power Supply Cord | 1.7 m (5.6 ft) |
Available Options
PDC01 (191A62-6) included
18V Adapter (Part No. 191J50-7), 18Vx2 Adapter (Part No. 191J51-5), Harness Assembly
PDC01 (191A67-6) included
18Vx2 Adapter (Part No. 191J51-5), Harness Assembly
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
