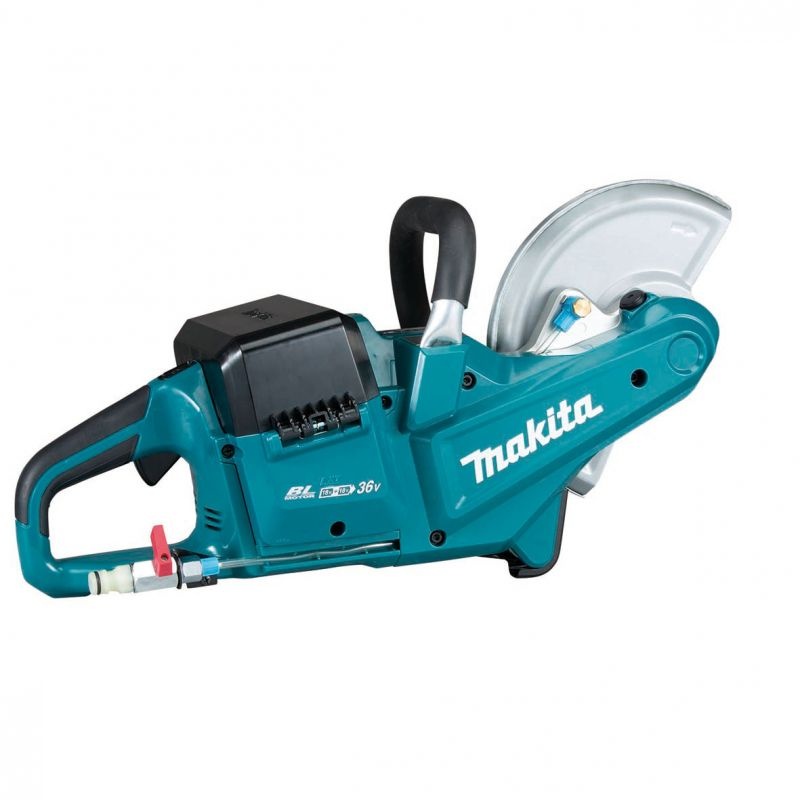

DCE090Z 230 mm (9")

18Vx2 Cordless Power Cutter


  • 230 mm Diamond wheel ideal for cordless power cutter; New diamond wheel with even pattern placement of diamond grits
  • Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows or wheel is forced to stop
  • LED job light enables operation in the dark sites where electricity is not supplied; can be turned on/off by pushing the button conveniently located on the top of the tool
  • Low vibration for increased operator convenience
  • BL motor delivers 6,600 RPM
  • Lock-off button prevents accidental start up



Model NameDCE090Z
Product Name18Vx2 Cordless Power Cutter
Wheel Diameter230 mm (9")
Max Wheel Thickness3.0 mm (1/8")
Wheel Hole Diameter22.23mm (7/8")
Max Cutting Capacity88 mm (3-1/2")
No Load Speed (RPM)6,600
Dimensions (L x W x H)554 x 241 x 283 mm (21-3/4" x 9-1/2" x 11-1/8")
Net Weight5.6 - 6.3 kg (12.3 - 13.9 lbs.)
Work AmountConcrete Cutting 30mm depth 7.8m length with Diamond Wheel with BL1860B x2

Standard Equipment
Hex Wrench, Wrench, Coupling Sleeve

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
