Product Detail

Features


  • Punches up to 20 mm Holes through Steel Plate up to 8 mm thick
  • Automatic punch return: After a punching cycle is completed, hydraulic pressure automatically pulls off the punch from workpiece and returns it to the initial position to enable efficient continuous hole punching
  • Type of hole: Round hole / long hole
  • Work volume on a full battery charge: 110 holes (approx.)

Specification



Thumbnail
Model NameDPP200ZK

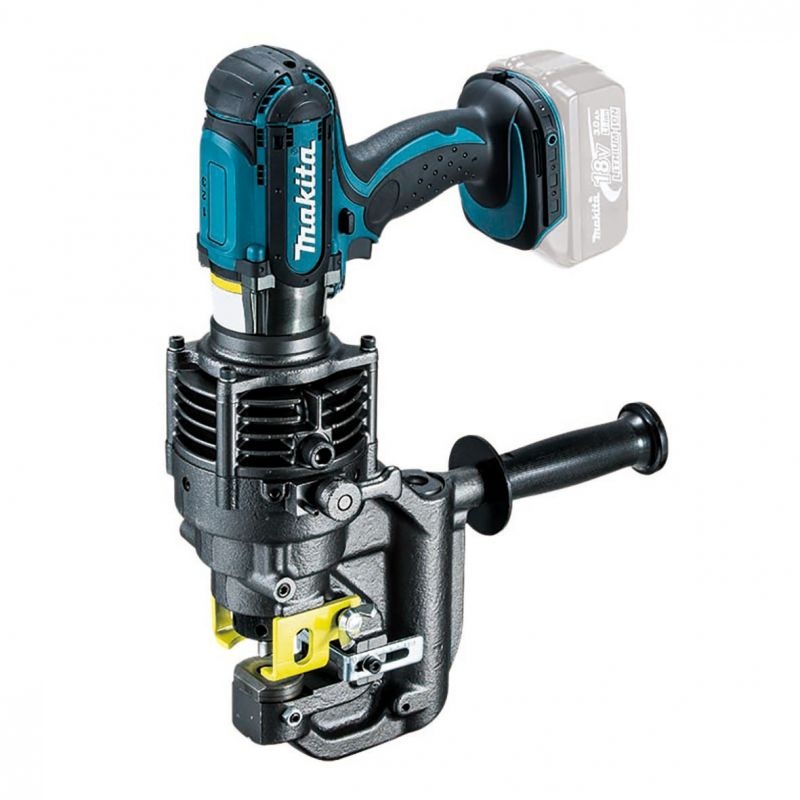

Product Name18V Cordless Hole Puncher
CapacitySteel: 20 mm (13/16")
Stainless Steel: 20 mm (13/16")
Max Throat Depth40 mm (1-9/16")
Dimensions (L x W x H)417 x 127 x 315 mm (16-3/8" x 5" x 12-3/8")
Net Weight10.5 kg (23.2 lbs.)

Standard Equipment
Punch, Dice, Hex Wrench, Spanner, Bar for Fastening Nuts, Grip, Oil

Available Option
ZK: With Carrying Case, Without Charger & Battery



*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
