Product Detail
HS004GM201/ GZ 190 / 185 mm (7-1/2" / 7-1/4")

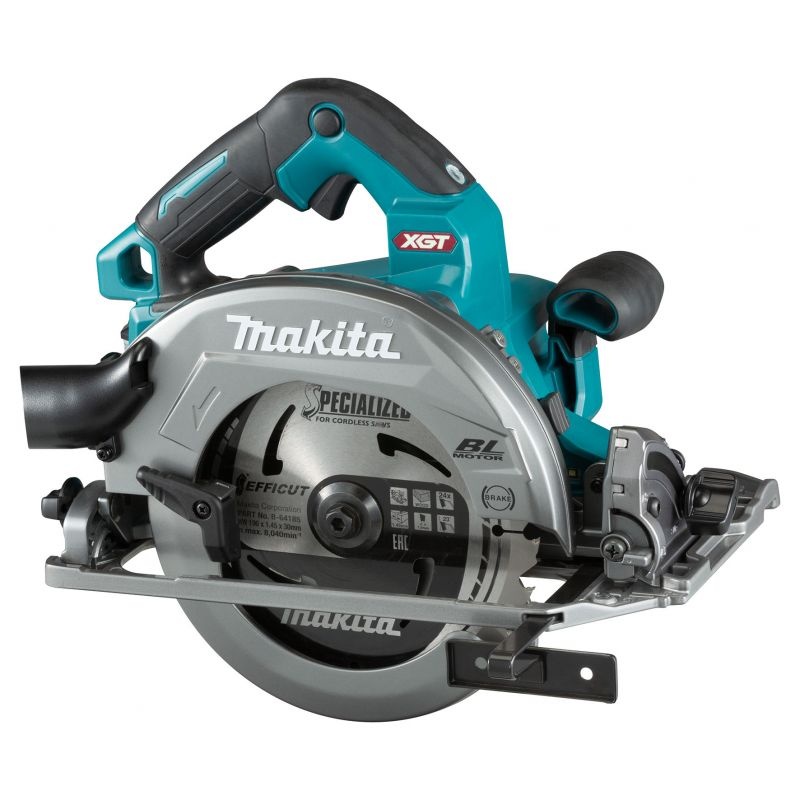

40Vmax Cordless Circular Saw
Features
- 40Vmax XGT Li-Ion battery and BL motor allow for excellent balance of high power and lightweight maneuverability similar to corded tools
- Increased visibility of ink line position
- BL motor delivers 6,000 RPM for fast cutting
- Large cutting capacity (62.5 mm at 90°) and bevel capacity (0° - 48°) with a positive stop at 45°
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
- Lock-off (2 stage) safety switch for increased operator safety
Specification
| Thumbnail |  |
| Model Name | HS004GM201/ GZ |
| Product Name | 40Vmax Cordless Circular Saw |
| Blade Diameter | 190 mm (7-1/2") | 185 mm (7-1/4") |
| Max Cutting Capacity | 90°: 62.5 mm (2-7/16") | 60 mm (2-3/8") 45°: 44.5 mm (1-3/4") | 43 mm (1-11/16") 48°: 42 mm (1-5/8") | 41 mm (1-5/8") |
| No Load Speed (RPM) | 6,000 |
| Dimensions (L x W x H) | 322 x 210 x 290 mm (12-5/8" x 8-1/4" x 11-3/8") |
| Net Weight | 4.4 - 4.7 kg (9.7 - 10.4 lbs.) |
| Work Amount (approx.) | 145 pcs Melapi thickness: 60 mm, width 300 mm with BL4040 |
* Recommended batteries 4.0Ah, 5.0Ah
Standard Equipment
TCT Saw Blade (B-62022), Dust Nozzle, Hex Wrench, Guide Rule
Available Options
GM201: 2x 4.0Ah Battery, 1x Fast Charger
GZ: Without Battery, Charger & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown areA for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
