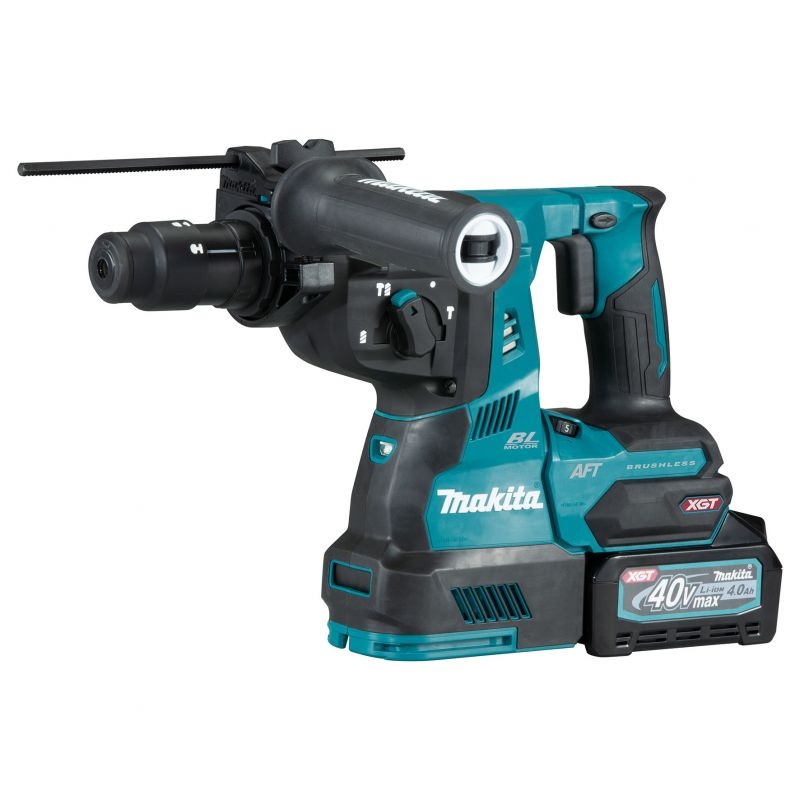

HR002GM201 28 mm (1-1/8")

40Vmax Cordless Combination Hammer


  • Anti-Vibration Technology (AVT) for extremely low vibration
  • Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
  • Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
  • Soft no load function automatically reduces the motor speed during idling to suppress the vibration
  • 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only"
  • One touch sliding chuck enables quick and easy bit changes



Model NameHR002GM201
Product Name40Vmax Cordless Combination Hammer
Impact EnergyEPTA-Procedure 05/2009: 2.9 J
CapacityConcrete: 28 mm (1-1/8") | Steel: 13 mm (1/2") | Wood: 32 mm (1-1/4" ) | Core Bit: 54 mm (2-1/8") | Diamond Core Bit (Dry Type): 65 mm (2-9/16")
Impacts Per Minute (IPM)0 - 5,000
No Load Speed (RPM)0 - 980
Dimensions (L x W x H)389 x 102 x 232 mm (15-1/4" x 4" x 9-1/8")
Net Weight4.1 - 4.6 kg (9.0 - 10.1 lbs.)

Standard Equipment
Side Grip, Depth Gauge, Cloth, Grease Vessel (194683-7), Drill Chuck (199139-5)

Available Option
M201: 2x 4.0Ah Battery, 1x Fast Charger

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
