Product Detail

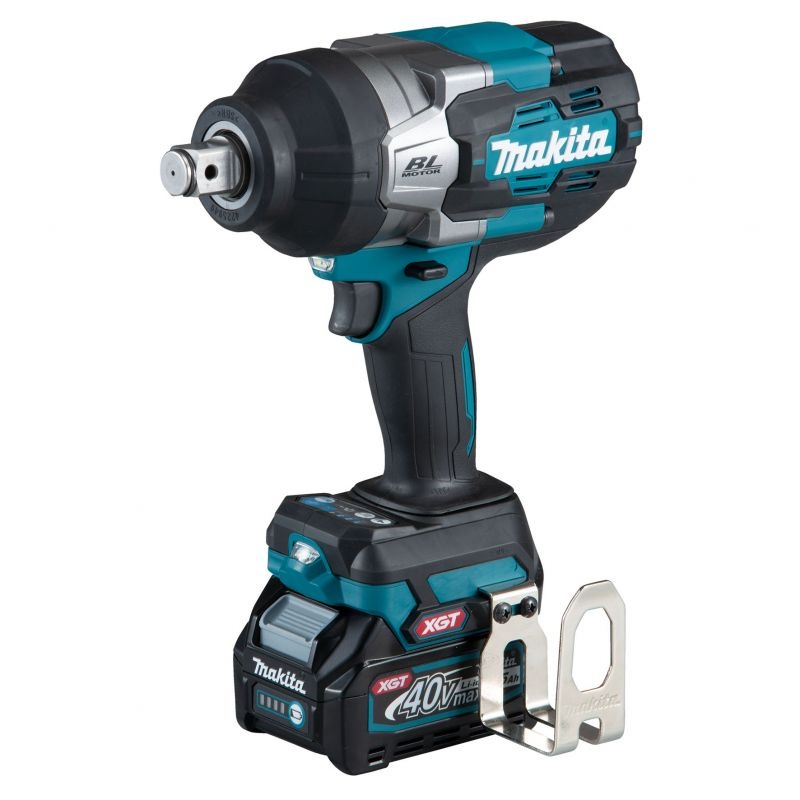

TW001GM204/ GZ02 19 mm (3/4")
40Vmax Cordless Impact Wrench
Features
- High torque but compact overall length for easy handling and control.
- Electronic 4 stage impact power selection for added versatility.
- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes.
- Trigger switch with full speed mode allows for less hand and finger fatigue.
- BL motor delivers 1,800 N·m (1,330 ft lbs) of max torque and 2,050 N·m (1,510 ft lbs) of nut-busting torque.
Specification
| Thumbnail |  |
| Model Name | TW001GM204/ GZ02 |
| Product Name | 40Vmax Cordless Impact Wrench |
| Fastening Capacities | Standard Bolt: M12 - M36 (1/2 - 1-7/16") High Strength Bolt: M10 - M27 (3/8 - 1-1/16") |
| Nut-Busting Torque | 2,050 N·m (1,510 ft lbs) |
| Square Drive | 19 mm (3/4”) C-Ring |
| Impacts Per Minute (IPM) | Max: 0 – 2,500 Hard: 0 - 2,400 Mid: 0 – 2,200 Soft: 0 – 1,900 |
| Max Fastening Torque | 1,800 N·m (1,330 ft lbs) |
| No Load Speed (RPM) | Max: 0 - 1,800 Hard: 0 - 1,400 Mid: 0 – 1,150 Soft: 0 - 950 |
| Dimensions (L x W x H) | 217 x 94 x 297 mm (8-1/2 x 3-11/16 x 11-3/4") |
| Net Weight | 3.9 - 4.2 kg (8.6 - 9.3 lbs) |
| Work Amount (approx.) | 870 pcs with BL4040 x2 Tightening of M24 bolts |
* Recommended batteries 2.0 Ah, 2.5 Ah, 4.0 Ah, 4.0 Ah (F)
Standard Equipment
Belt Clip, Shoulder Belt (161347-8) for GM204 & GZ02
Available Options
GM204: 1x Fast Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box Type 3
GZ02/ GZ: Without Charger, Battery & Carrying Case
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
