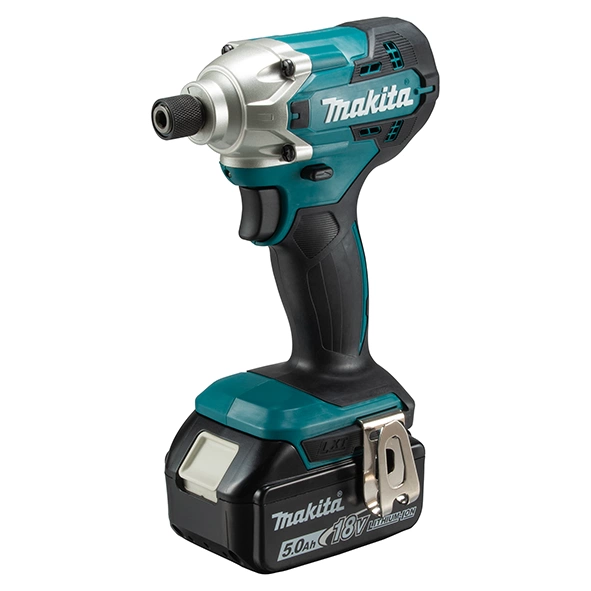

DTD156SF/ Z

18V Cordless Impact Driver


Features


  • Aluminum hammer case for creating the impression of rigidity
  • Compact, lightweight but powerful 4-pole motor
  • Lightweight for reduced operator fatigue
  • Electric brake for maximum productivity and increased operator safety
  • Durable, reversible belt clip convenient for temporary tool hanging
  • Battery protection circuit protects against overloading, over-discharging and over-heating

Specification



Thumbnail
Model NameDTD156SF/ Z
CapacityMachine Screw: M4 - M8 (5/32" - 5/16")
Standard Bolt: M5 - M14 (3/16" - 9/16")
High Strength Bolt: M5 - M12 (3/16" - 1/2")
Coarse Thread (in length): 22 - 125 mm (7/8" - 4-7/8")
Product Name18V Cordless Impact Driver
Hex Shank6.35 mm (1/4")
Impacts Per Minute (IPM)0 - 3,000
No Load Speed (RPM)0 - 2,500
Max Fastening Torque155 N·m (1,370 in.lbs.)
Dimensions (L x W x H)143 x 79 x 223 mm (5-5/8" x 3-1/8" x 8-3/4")
Net Weight1.3 - 1.6 kg (2.9 - 3.6 lbs.)

Standard Equipment
Belt Clip

Available Options
SF: 1x Standard Charger, 1x 3.0Ah Battery
Z: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
