• Minimal length of fan stand has been achieved while retaining automatic oscillation
  • Easily removable fan cover for convenient clean-up
  • Quiet running; Wind noise level has been reduced thanks to redesigned fan and fan cover
  • Automatically swings 45° L/R
  • Fan head angle can be adjusted from side to side and up and down (Up 90°, Down 45°, Right and Left 90°)
  • 3-stage automatic timer with 1, 2, and 4 hour power-off selection
  • Up to 19.5 hours of continuous runtime on low speed with a 18V 6.0Ah LXT battery (battery not included)
  • 3 settings (High 190 m/min, Medium 150 m/min, Low 120 m/min) for optimal air velocity control
  • 235 mm (9-1/4") large fan produces strong enough air to create a comfortable work environment under hot weather conditions

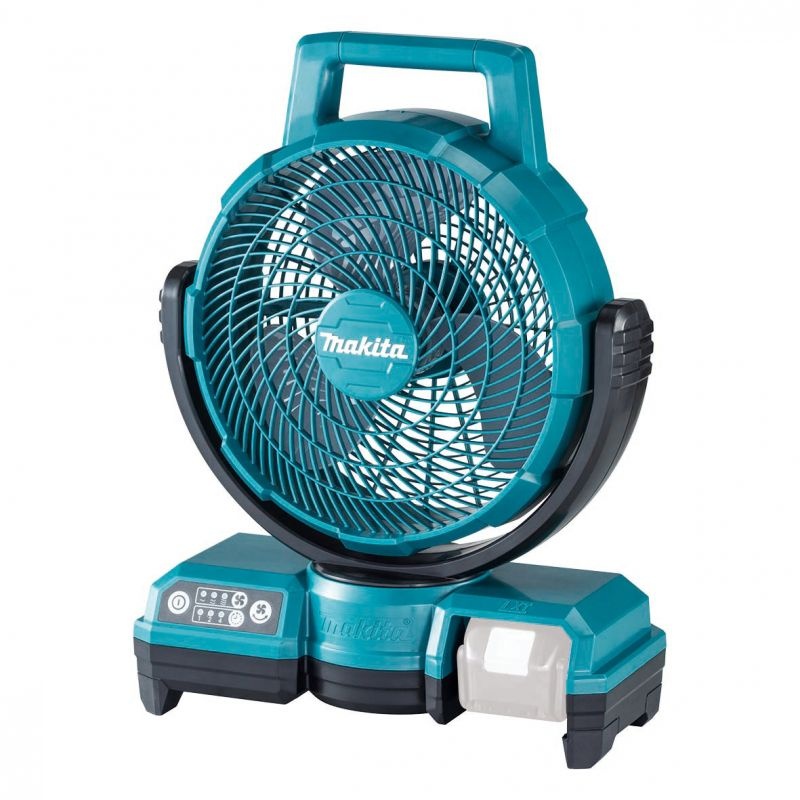

Model NameDCF203Z
Product Name18V/ 14.4V Cordless Fan
Air FlowHigh: 8.2 | Med: 6.5 | Low: 5.2 m³/min
Max Air VelocityHigh: 190 | Med: 150 | Low: 120 m/min
Dimensions (L x W x H)140 x 333 x 447 mm (5-1/2" x 13" x 16-1/2")
Net Weight1.9 - 2.6 kg (4.3 - 5.6 lbs.)
Continuous Use (min)High: 410 | Med: 650 | Low: 1,010 with BL1860B

Available Option(s)
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
