Product Detail
Features
- Delivers 165 N·m (122 ft lbs ) of max torque in an ultra compact size.
- Reverse Rotation Auto-Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough.
- Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications.
- Ideal for working in tight spaces and overhead applications.
- Built-in LED light with pre-glow and afterglow function illuminates the work area.
- Aluminum hammer case creates the impression of rigidity of the machine.
- Electric brake for increased operator safety.
- Reversing switch is conveniently located.
- Convenient 1/2" (12.7 mm) square drive for quick socket changes.
Specification
| Thumbnail |  |
| Model Name | TW161DZ |

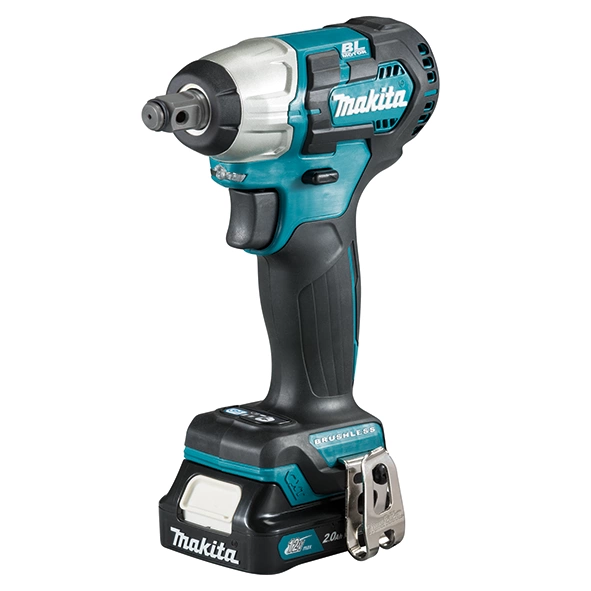

| Product Name | 12Vmax Cordless Impact Wrench |
| Fastening Capacities | Standard Bolt: M8 - M16 (5/16 - 5/8") High Tensile Bolt: M6 - M12 (1/4 - 1/2") |
| Square Drive | 12.7 mm (1/2") |
| Impacts Per Minute (IPM) | Hard: 0 - 3,600 | Soft: 0 - 2,000 |
| Max Fastening Torque | 165 N·m (122 ft lbs) |
| No Load Speed (RPM) | Hard: 0 - 2,400 | Soft: 0 - 1,300 |
| Dimensions (L x W x H) | 150 x 66 x 213mm (5-7/8 x 2-5/8 x 8-3/8") |
| Net Weight | 1.1 - 1.2 kg (2.4 - 2.7 lbs) |
Standard Equipment
Belt Clip
Available Options
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
