Product Detail

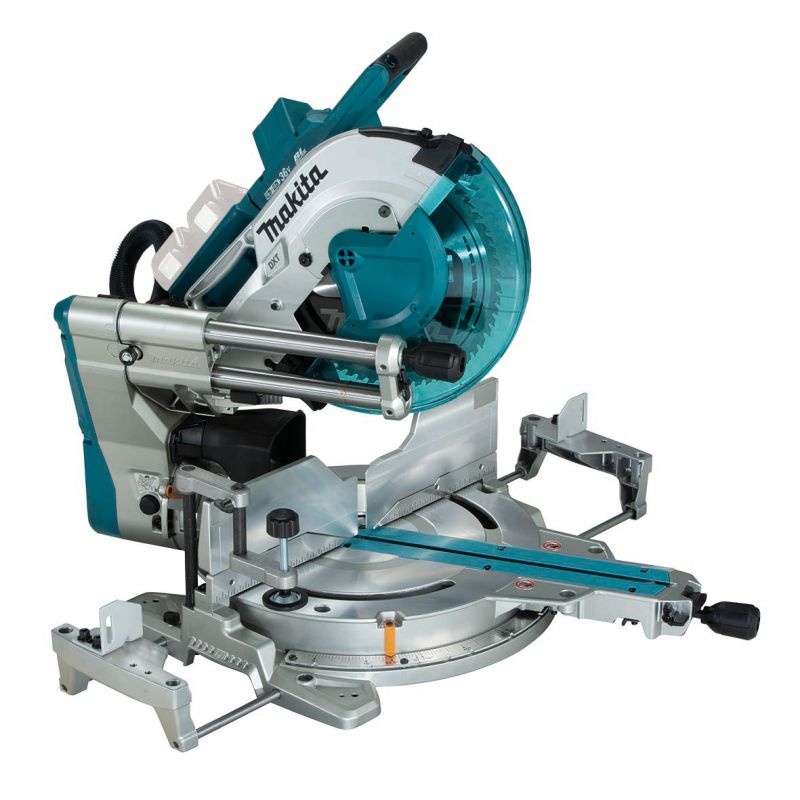

DLS211Z 305 mm (12")
18Vx2 Cordless Slide Compound Miter Saw
Features
- Rail-forward design enables to be placed against a wall for maximizing work space
- High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw
- Large turn base supports workpiece securely for increased stability
- Integrated guide fences for increased rigidity and high cutting accuracy
- Increased dust extraction rate for a cleaner work environment
- Single sliding system enables smooth operation to produce superior cuts
- Front knob for easy bevel angle adjustment
- Slide lock for locking the sliding movement of the carriage
- Holders are provided on both sides of the tool to hold long workpieces horizontally
- Increased capacity for up to 203 mm (8") crown molding (vertically nested), 171 mm (6-3/4") baseboard (vertical), and 382 mm crosscuts at 90°
- Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity
Specification
| Thumbnail |  |
| Model Name | DLS211Z |
| Product Name | 18Vx2 Cordless Slide Compound Miter Saw |
| Blade Diameter | 305 mm (12") |
| Miter Angle | 60° L / 60° R |
| Bevel Angle | 48° L / 48° R |
| Max Cutting Capacity | 90° Miter: 107 x 363 mm (4-1/4 x 14-1/4") 90° Miter: 92 x 382 mm (3-5/8 x 15") 45° Miter, L/R: 107 x 255 mm (4-1/4 x 10") 45° Miter, L/R: 92 x 268 mm (3-5/8 x 10-1/2") |
| No Load Speed (RPM) | 4,400 |
| Dimensions (L x W x H) | 898 x 664 x 725 mm (35-1/4" x 26-1/8" x 28-1/2") |
| Net Weight | 30.7 - 31.3 kg (67.6 - 69.1 lbs.) |
| Work Amount (approx.) | 90 cuts with BL1860B x2 Melapi thickness 60 mm x width 300 mm 90° Slide cutting |
Standard Equipment
TCT Saw Blade (B-67452), Dust Bag (1228520), Triangular Rule, Vertical Vise, Hex Wrench
Available Option
Z: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
