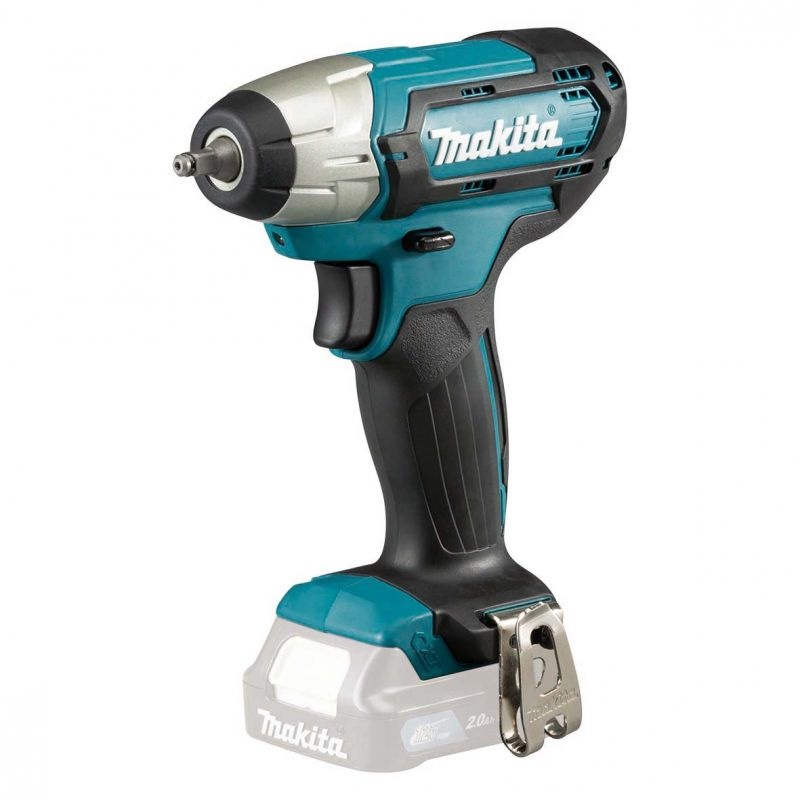

TW060DZ 6.35mm (1/4")

12Vmax Cordless Impact Wrench


  • Delivers 60 N·m (44 ft.lbs.) of Max Torque
  • Variable speed (0-2,600 RPM & 0-3,200 IPM) for a wide range of fastening applications
  • Ergonomically designed handle with soft grip provides increased comfort on the job
  • Built-in LED light with preglow and afterglow functions illuminates the work area
  • Convenient 1/4" (6.35 mm) square drive for quick socket changes
  • Electric brake for increased operator safety
  • Same fastening torque in forward and reverse rotation
  • Reversing switch is conveniently located
  • Durable, reversible belt clip convenient for temporary tool hanging



Model NameTW060DZ
Product Name12Vmax Cordless Impact Wrench
Fastening CapacitiesStandard Bolt: M8 - M12 (5/16" - 15/32")
High Tensile Bolt: M6 - M10 (1/4" - 3/8")
Square Drive6.35 mm (1/4")
Impacts Per Minute (IPM)0 - 3,200
No Load Speed (RPM)0 - 2,600
Max Fastening Torque60 N·m (44 ft.lbs.)
Dimensions (L x W x H)With BL1016/ BL1021B: 161 x 66 x 205 mm (6-3/8" x 2-5/8" x 8-1/8")
With BL1041B: 161 x 66 x 224 mm (6-3/8"x2-5/8"x8-7/8")
Net Weight1.0 - 1.2 kg (2.2 - 2.6 lbs.)

Standard equipment
Belt Clip

Available options
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
