Product Detail

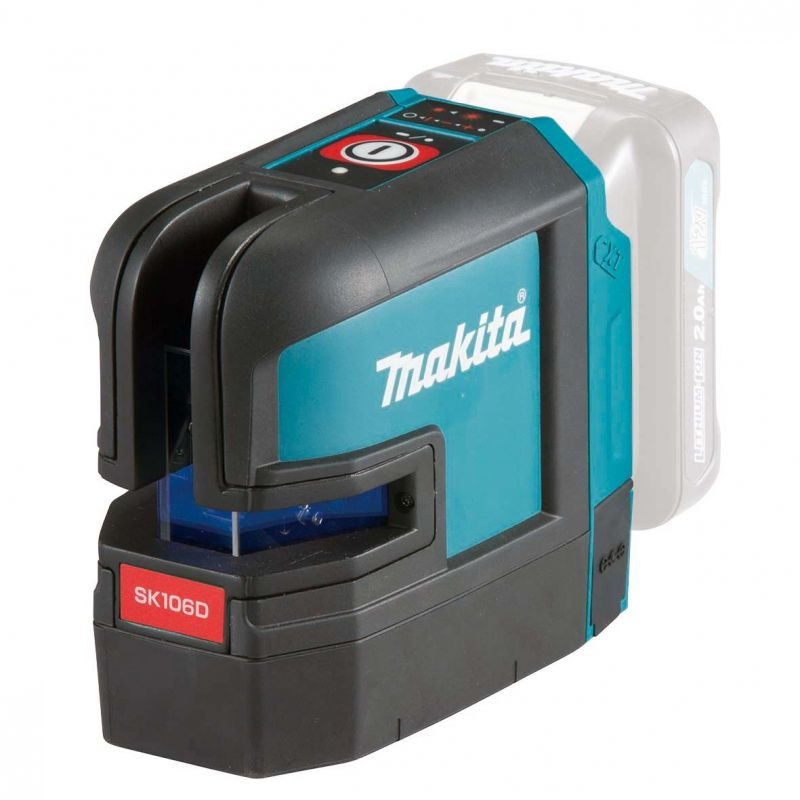

SK106DZ

12Vmax Rechargeable Red 4-point Cross Line Laser


Features


  • Up to 40 hours of continuous illumination in high visibility mode with BL1041B
  • Line visibility range up to 25 m / 80 m (with Receiver)
  • Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage
  • Handy and accurate self-leveling 4-point crossline laser
  • Brightness selection: 2 Modes (Bright mode / Eco mode)
  • Accuracy +/- 3 mm @ 10 m
  • Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces
  • Recessed laser windows are highly protected from fracture damage in slot positions for increased durability
  • Horizontal aligning: Convenient way to transfer reference points from one wall to another
  • Vertical aligning: The simple way to ensure that walls, floor, tiles, joints precisely meet one another
  • Allows for attachment to a tripod

Specification



Thumbnail
Model NameSK106DZ
Product Name12Vmax Rechargeable Red 4-point Cross Line Laser
Measuring RangeUp to: 25 m
Measuring Range with DetectorUp to: 80 m
Leveling Accuracy±3 mm/ 10 m
Self-Leveling Range±4°
Laser Fan AngleHorizontal: 180°
Vertical: 170°
Number of Laser Points4
Number of Laser Lines2
Laser TypeLaser class 2: 635 nm
Dimensions (L x W x H)138 x 64 x 102 mm (5-7/16" x 2-1/2" x 4")
Net Weight0.69 - 0.85 kg (1.5 - 1.9 lbs.)
Continuous Usage Time (approx.)20 hrs with BL1021B
at Max output

Standard Equipment
Soft Bag, Target Plate

Available Option
DZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
