Product Detail
DWT310ZK M20 (3/4") | M22 (7/8")

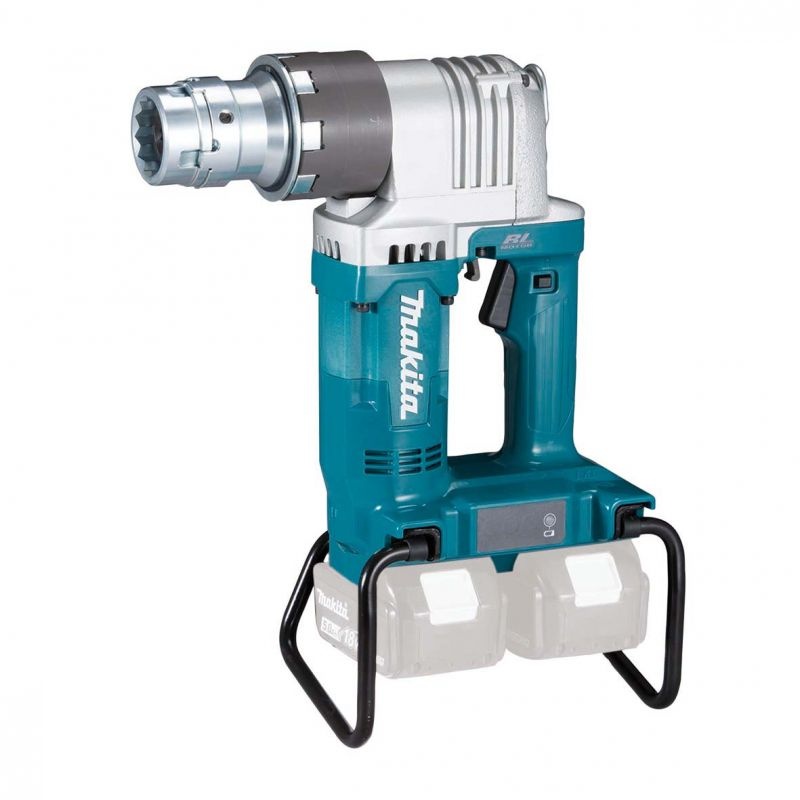

18Vx2 Cordless Shear Wrench
Features
- Up to 14% Faster Fastening than Corded Model 6922NB
- Fastens 380 M22 (7/8") torque shear bolts with two 18V 6.0 Ah batteries
- High power delivered by 36V (18Vx2) DC Brushless motor enables to fasten as fast as if you were using a corded shear wrench
- Delivers 804 N·m (593 ft.lbs.) of max torque for the most demanding applications
- Fastens 190 M22 (7/8") torque shear bolts with two 18V 3.0 Ah batteries
- Battery capacity warning light indicates ideal time to recharge battery
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
Specification
| Thumbnail |  |
| Model Name | DWT310ZK |
| Capacity | High Strength Torque Shear Bolt (HTB): M16 (optional), M20, M22 (5/8, 3/4, 7/8") Super High Strength Torque Shear Bolt (SHTB): M16, M20 (5/8, 3/4") |
| Product Name | 18Vx2 Cordless Shear Wrench |
| Max Fastening Torque | 804 N·m (593 ft. lbs.) |
| No Load Speed (RPM) | 14 |
| Dimensions (L x W x H) | 296 x 130 x 377 mm (11-5/8" x 5-1/8" x 14-7/8") |
| Net Weight | 6.5 - 7.1 kg (14.3 - 15.7 lbs.) |
| Work Amount (approx.) | 300 pcs with BL1850B x2 M22 (7/8") Torque Shear Bolts |
Standard Equipment
Screwdriver, Shoulder Belt, M20 Sleeve, M22 Sleeve
Available Option
ZK: With Carrying Case, Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
