Product Detail
Features
- Cuts 3X Material in a Single Pass; Blade Left Design
- Electric brake for maximum productivity and increased operator safety
- Compact and lightweight for reduced operator fatigue
- Retractable, extra-wide tool hook secures the tool when not in use
- Built-in tether notch (tether sold separately)
- Die-cast magnesium base and blade guard along with a die-cast aluminum blade cover and motor housing provide a lightweight, durable design
- Soft start for smooth start-ups
- Gear lubrication with grease enables easier filling and less leakage while reparing
Specification
| Thumbnail |  |

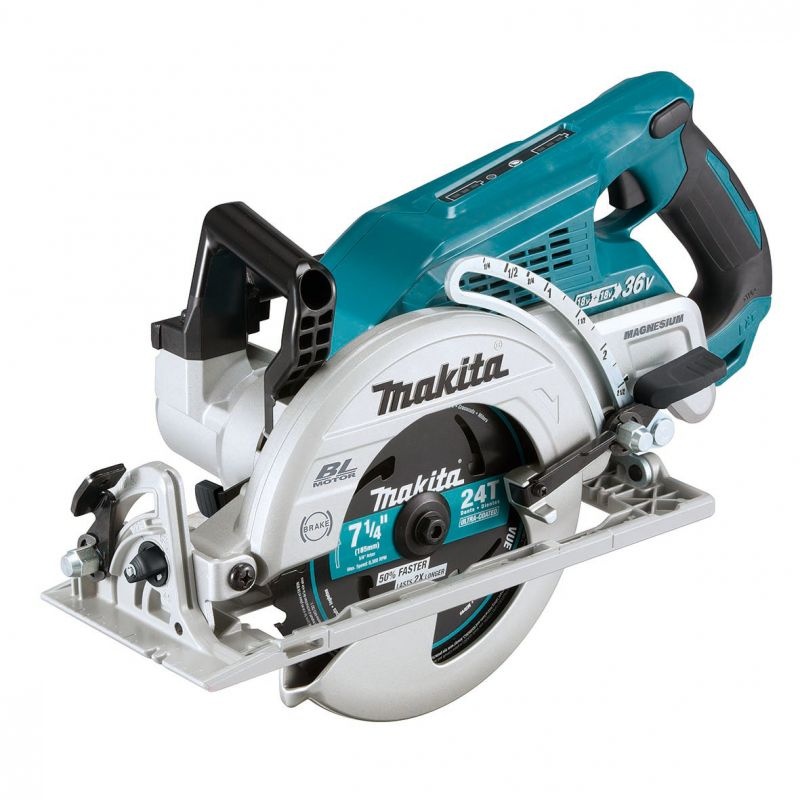

| Model Name | DRS780Z |
| Product Name | 18Vx2 Cordless Rear Handle Saw |
| Blade Diameter | 185 mm (7-1/4") |
| Max Cutting Capacity | 90°: 65 mm (2â€9/16") 45°: 45 mm (1-3/4") 53°: 38 mm (1-1/2") |
| No Load Speed (RPM) | 5,100 |
| Dimensions (L x W x H) | 446 x 196 x 270 mm (17-1/2" x 7-3/4" x 10-5/8") |
| Net Weight | 5.0 - 5.6 kg (11.1 - 12.4 lbs.) |
| Work Amount (approx.) | 290 cuts with BL1850B x2 SPF 2 x 10 (Thickness 38 mm, Width 235 mm) 90° Cut |
Standard Equipment
TCT Saw Blade (B-62022), Offset Wrench
Available Option
Z: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
