Product Detail

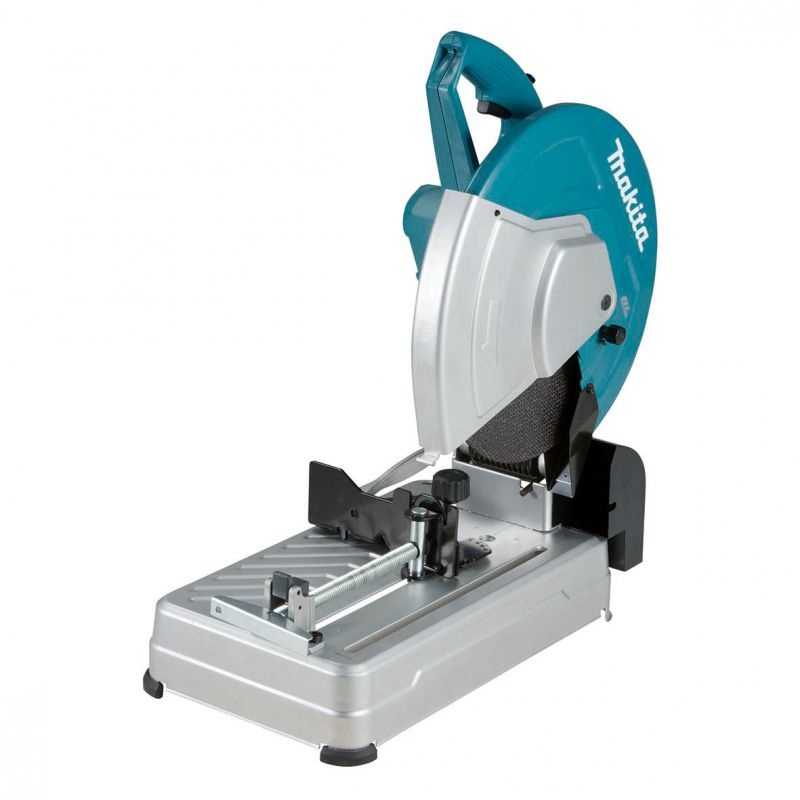

DLW140Z 355 mm (14")
18Vx2 Cordless Portable Cut-off
Features
- Cuts 130 metal studs with BL1850B x2
- Electric brake allows adjustments to be completed faster for maximum productivity
- Load status indicator shows the load level on the motor during cutting operation
- Suitable for light duty application, such as cutting metal studs
- Toolless flange removal for quick and easy wheel changes
- Toolless fence and vise controls for quick and easy adjustments to varied needs
- Large spark guard captures and deflects debris away from the surrounding area
- Quick release vise for secure stock retention and fast repeated cut offs
- Pin type saw head locking device for storage and transport
Specification
| Thumbnail |  |
| Model Name | DLW140Z |
| Wheel Diameter | 355 mm (14") |
| Product Name | 18Vx2 Cordless Portable Cut-off |
| Capacity at 90° | Round: 127 mm (5") Rectangular: 102 x 194 mm (4" x 7-5/8") Rectangular: 70 x 233 mm (2-3/4" x 9-1/8") Rectangular: 115 x 130 mm (4-1/2" x 5-1/8") |
| Capacity at 45° | Round: 127 mm (5") Rectangular: 115 x 103 mm (4-1/2 x 4-1/16") |
| Max Wheel Thickness | 3 mm (1/8") |
| Hole Diameter | 25.4 mm (1") |
| No Load Speed (RPM) | 3,800 |
| Dimensions (L x W x H) | 537 x 280 x 640mm (21-1/8" x 11" x 25-1/4") |
| Net Weight | 17.2 - 17.8 kg (37.9 - 39.3 lbs.) |
| Work Amount (approx.) | 130 cuts with BL1850B x2 Metal Stud H: 75 mm | W: 45 mm | T: 0.8 mm |
Standard equipment
Cut-Off Wheel (B-64696)
Available options
Z: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
