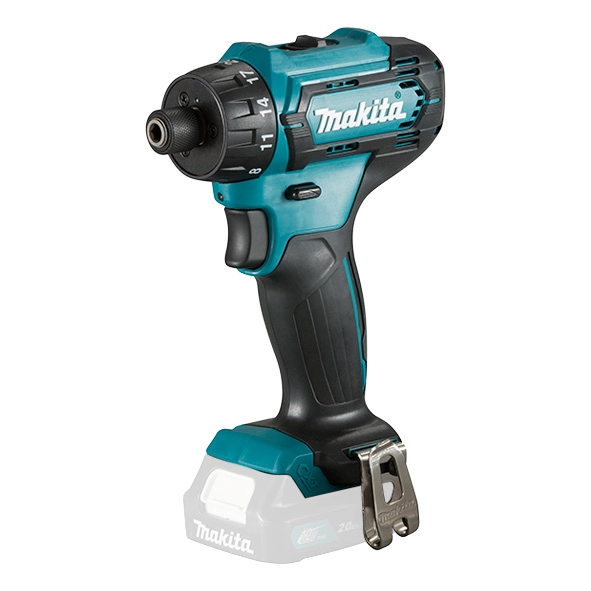

DF033DSME/ WAE/ Z 10mm (3/8")

12Vmax Cordless Driver Drill


  • Variable 2-speed design (0-450 & 0-1,700 RPM) covers a wide range of drilling and driving applications
  • 12V max slide battery design enables the tool to stand on its own for user convenience
  • Multi-contact terminals ensure stable contact with battery even under extreme vibration
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Convenient 6.35 mm (1/4") Hex chuck for quick bit changes
  • 20 clutch settings and drill mode for added fastening control
  • Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
  • Electric brake for maximum productivity and increased operator safety



Model NameDF033DSME/ WAE/ Z
Product Name12Vmax Cordless Driver Drill
CapacitySteel: 10 mm (3/8")
Wood: 21 mm (13/16")
Chuck Capacity6.35 mm (1/4")
No Load Speed (RPM)High: 0 - 1700 | Low: 0 - 450
Max Fastening TorqueHard: 30 N·m (270 in.lbs) | Soft: 14 N·m (130 in.lbs.)
Max Lock Torque28 N·m (250 in.lbs.)
Dimensions (L x W x H)With BL1016/BL1021B: 149 x 66 x 212 mm (5-7/8" x 2-5/8" x 8-3/8")
With BL1041B: 149 x 66 x 229 mm (5-7/8" x 2-5/8" x 9")
Net Weight0.9 - 1.1 kg (2.1 - 2.4 lbs.)

Standard equipment
Phillips Bit, Belt Clip

Available options
SME: 1x Speed Charger, 2x 4.0Ah Battery
WAE: 1x Standard Charger, 2x 2.0Ah Battery
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
