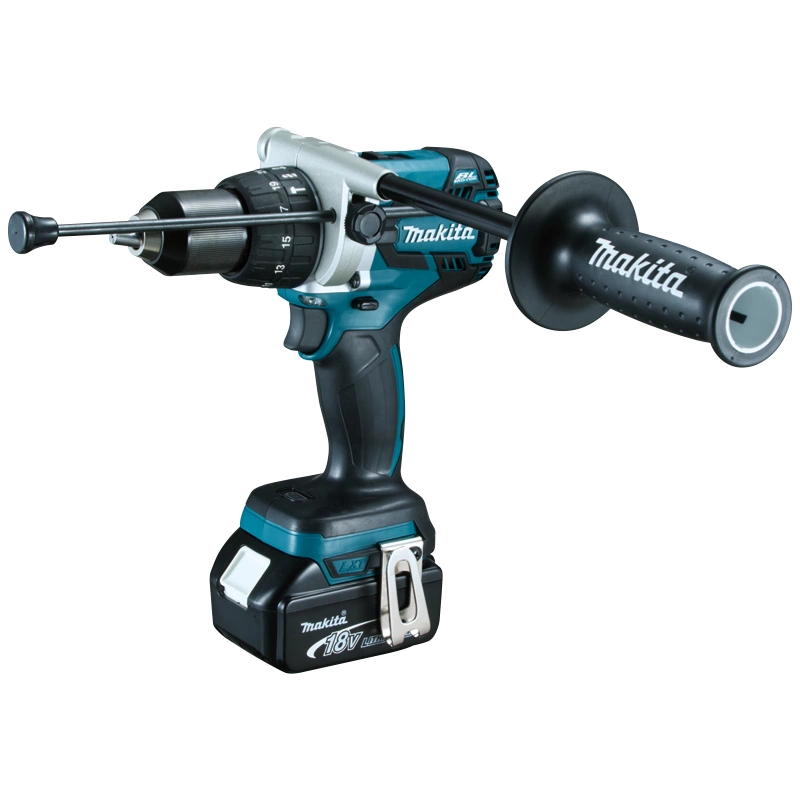

DHP481RTE/ RFE/ Z 13 mm (1/2")

18V Cordless Hammer Driver Drill


  • All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications
  • All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
  • 3-Stage LED gauge indicates battery charge level
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Dual LED lights with afterglow feature illuminate the work area




Model NameDHP481RTE/ RFE/ Z
CapacitySteel: 13 mm (1/2")
Wood: 76 mm (3")
Masonry: 16 mm (5/8")
Product Name18V Cordless Hammer Driver Drill
Chuck Capacity1.5 - 13 mm (1/16 - 1/2")
Impacts Per Minute (IPM)High: 0 - 31,500 | Low: 0 - 8,250
No Load Speed (RPM)High: 0 - 2,100 | Low: 0 - 550
Max Fastening TorqueHard: 115 N·m (1,020 in.lbs.) | Soft: 60 N·m (530 in.lbs.)
Max Lock Torque125 N·m (1,090 in.lbs.)
Dimensions (L x W x H)205 x 79 x 249 mm (8-1/8" x 3-1/8" x 9-3/4")
Net Weight2.7 - 3.0 kg (6.0 - 6.7 lbs.)
Work Amount630 holes with BL1850B
Wood Screw Ø 21 x 25 mm

Standard Equipments
Depth Gauge, Side Handle, Belt Clip, (+)(-) Bit, Bit Holder

Available Option
RTE: 1x Rapid Charger, 2x 5.0Ah Battery
RME: 1x Rapid Charger, 2x 4.0Ah Battery
RFE: 1x Rapid Charger, 2x 3.0Ah Battery
Z: Without Charger, Battery & Carrying Case

Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
