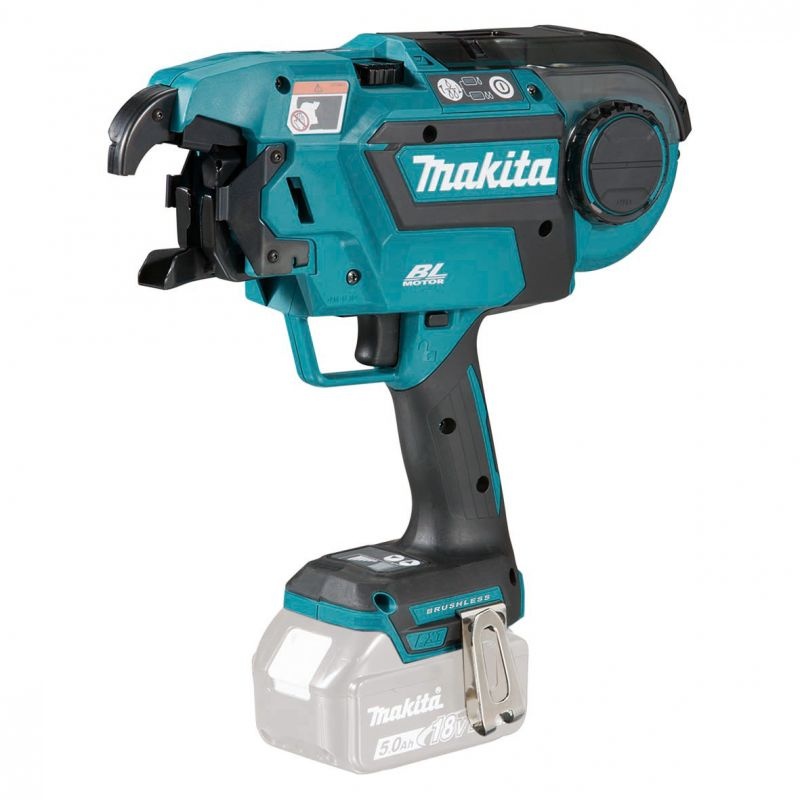

DTR180ZJ

18V Cordless Rebar Tying Tool


Features


  • Tying rebars can be done automatically in a various range of applications such as building concrete foundations
  • According to the condition of tying material, tying strength can be adjusted in 6 stages
  • Compatible with both 18V & 14.4V LXT batteries
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • φ0.8 mm Annealed tie wire dedicated for DTR180

Specification



Thumbnail
Model NameDTR180ZJ
Product Name18V Cordless Rebar Tying Tool
Tie Wireø0.8 mm
Applicable RebarsD10 x D10 - [D13x2] x [D13x2]
Max Output340 W
Dimensions (L x W x H)BL1815N/ BL1820B: 304 x 93 x 301 mm (12" x 3-2/3" x 11-7/8")
Net Weight2.3 - 2.6 kg (5.0 - 5.7 lbs.)

Standard equipment
Hex Wrench, Hook

Available options
ZJ: Without Charger & Battery, Makpac Connector Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
