Product Detail


  • Aluminum diecast bracket for high durability and long tool life
  • Guide rule for accurate and maximum use of planing width
  • Externally accessible brushes for easy serviceability

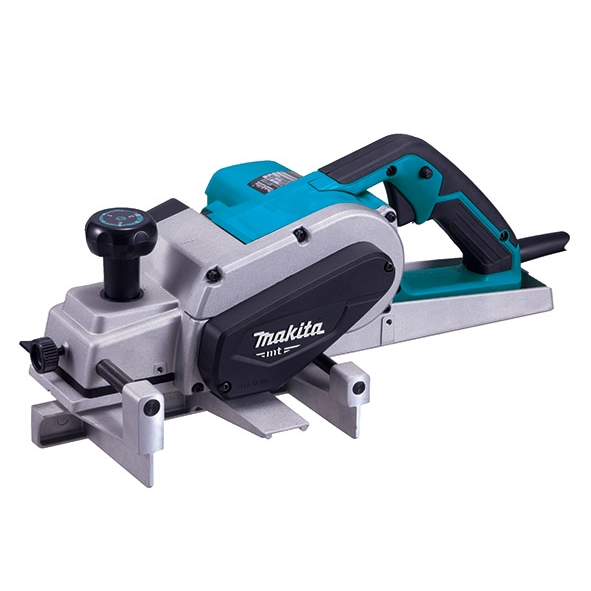

Model NameM1100B
Continuous Rating Input750 W
Planing Width82 mm (3-1/4")
Planing Depth3 mm (1/8")
Product NamePlaner
No Load Speed (RPM)18,000
Dimensions (L x W x H)390 x 175 x 140 mm (15-3/8" x 6-7/8" x 5-1/2")
Net Weight4.6 kg (10.2 lbs.)
Power Supply Cord2.0 m (6.6 ft)
Standard Equipment
Planer Blade, Sharpening Holder Assembly (for resharpenable blade), Blade Gauge, Socket Wrench, Guide Rule
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
