Product Detail


  • Two-blade cutter head with 16,000 RPM delivers smooth finish and fast stock removal
  • Base plate foot protects workpiece and blades from scratches and damages
  • V-groove on base for easy chamfer cutting
  • Compact design at only 285 mm (11-1/4") long
  • European specification unit is available with Dust nozzle for use with vacuum cleaner

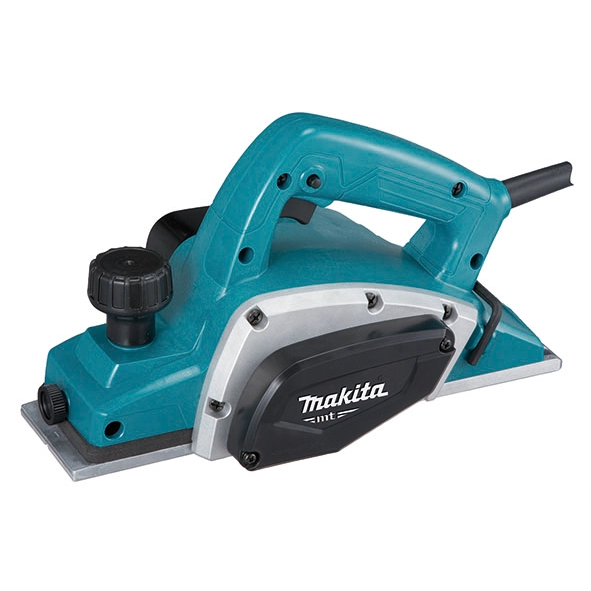

Model NameM1902B
Product NamePlaner
Continuous Rating Input580W
Planing Width82 mm (3-1/4")
Planing Depth1 mm (1/32")
No Load Speed (RPM)16,000
Dimensions (L x W x H)285 x 157 x 160 mm (11-1/4" x 6-3/16" x 6-5/16")
Net Weight2.7 kg (5.8 lbs.)
Power Supply Cord2.0 m (6.6 ft)
Standard equipment
Planer Blade, Sharpening Holder Assembly (for resharpenable blade), Blade Gauge, Guide Rule
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
