Product Detail


  • Easy alignment of base end with the cutting line on workpiece
  • Water supply fixture can be mounted
  • On-tool hex wrench for fast and easy blade changes and keeping it from lost
  • Specialized for right angle cutting only
  • Flat rear end is convenient for replacing the diamond wheel

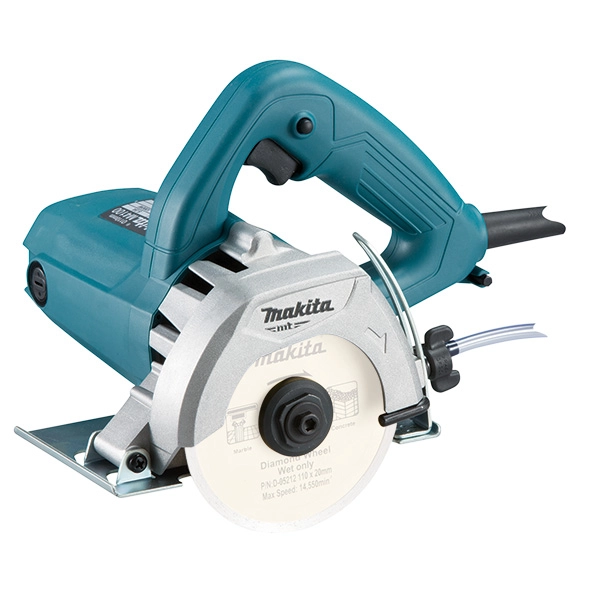

Model NameM4100B
Continuous Rating Input1,200 W
Product NameCutter
Blade Diameter110 mm (4-3/8")
Max Cutting Capacity90°: 32mm (1-1/4")
No Load Speed (RPM)13,000
Dimensions (L x W x H)227 x 209 x 166 mm (8-15/16" x 8-1/4" x 6-1/2")
Net Weight2.9 kg (6.4 lbs.)
Power Supply Cord2.0 m (6.6 ft)

Standard equipment
Wrench, Hex Wrench, Water Supply Set
(Tool does not come with Diamond Wheel)

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
