Planing | Routering

Features


  • Powerful 701 W motor delivers 11,000 RPM for quick, precise cutting in a variety of woods
  • Rack-and-pinion vertical fence system engineered for accurate fence adjustments
  • Cast aluminum pivot fence with three positive stops at 0°, 45° and 90°
  • Large and easy-to-operate cam locks for fence adjustments
  • Toolless blade cover and shaft lock for fast and easy blade changes

Specification



Thumbnail

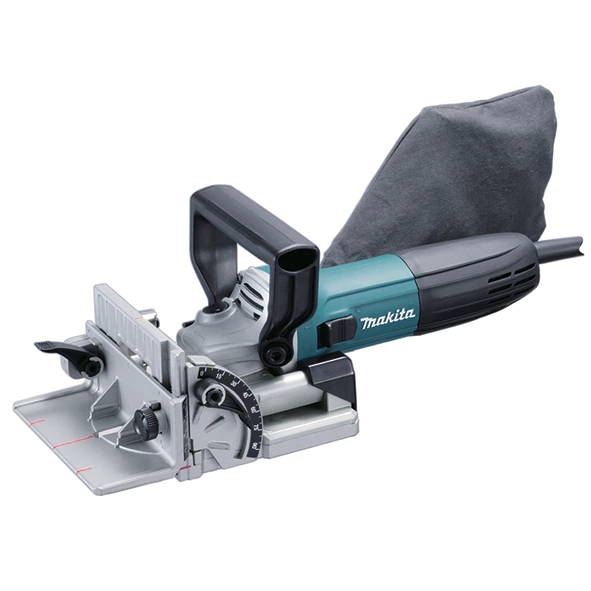

Model NamePJ7000
Continuous Rating Input701W
Product NameJoint Cutter
Blade Diameter100 mm (4")
No Load Speed (RPM)11,000
Dimensions (L x W x H)302 x 139 x 145 mm (11-7/8" x 5-1/2" x 5-3/4")
Net Weight2.8 kg (6.2 lbs.)
Power Supply Cord2.5 m (8.2 ft)

Standard equipment
Cutter Blade, Angle Guide, Dust Bag, Set Plate, Lock Nut Wrench

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
