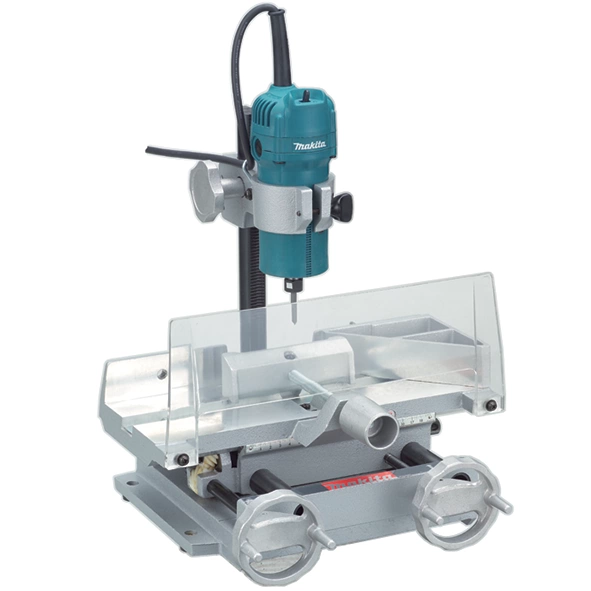

Product Detail
Features
- Mills and drills aluminum for sashes
- Trimmer model 3709 used as motor unit
- Large transparent chip guard for operator's safety
- Base travels side to side
- Base travels forward and backward
Specification
| Thumbnail |  |
| Model Name | 4403 |
| Product Name | Sash Router |
| Continuous Rating Input | 530W |
| Collet Capacity | 6 mm (1/4") |
| Max Width of Work | 123 mm (4-7/8") |
| Max Width of Work (45°) | 77 mm (3") |
| Max Height of Work | 185 mm (7-1/4") |
| No Load Speed (RPM) | 30,000 |
| Dimensions (L x W x H) | 327 x 350 x 355 mm (12-7/8" x 13-13/16" x 14") |
| Net Weight | 16 kg (35.3 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Collet cone (6 mm or 1/4"), Drill Point Sash Router Bit (D-16972), Angle Gauge, Wrench x2, Oil supply
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
