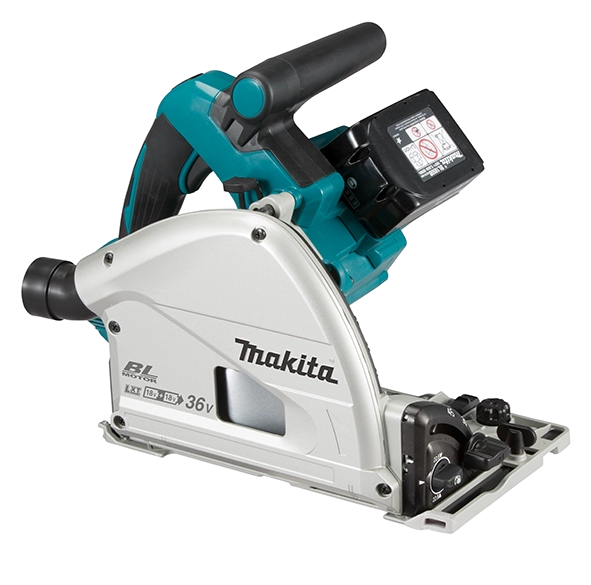

DSP601Z 165 mm (6-1/2")

18Vx2 Cordless Plunge Cut Saw


  • Auto-start Wireless System (AWS) Connects to Vacuum Cleaner with Bluetooth
  • Up to 80% faster cutting than corded model SP6000*¹
  • Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
  • 18V solution for corded power demands
  • Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform



Model NameDSP601Z
Bevel Capacity-1° - 48°
Product Name18Vx2 Cordless Plunge Cut Saw
Blade Diameter165 mm (6 - 1/2")
Max Cutting Capacity90°: 56 mm (2-3/16")
45°: 40 mm (1-9/16")
48°: 38 mm (1-1/2")
No Load Speed (RPM)2,500 - 6,300
Dimensions (L x W x H)346x241x272 mm (13-5/8"x9-1/2"x10-3/4")
Net Weight4.4 - 5.1 kg (9.8 - 11.2 lbs.)

Standard equipment
TCT Saw Blade, Hex Wrench

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
