Product Detail
Features
- 2 tools in 1 for convenience and versatility
- Smooth table elevation by just loosening levers and turning knob
- Large cutting capacity: Max cutting width up to 200 mm
- Cuts two layers of 192 mm x 23 mm wood floorings in a single stroke
- Powerful 1,650 W motor delivers 3,800 RPM for fast cutting
Specification
| Thumbnail |  |
| Model Name | LH1201FL |
| Continuous Rating Input | 1,650 W |

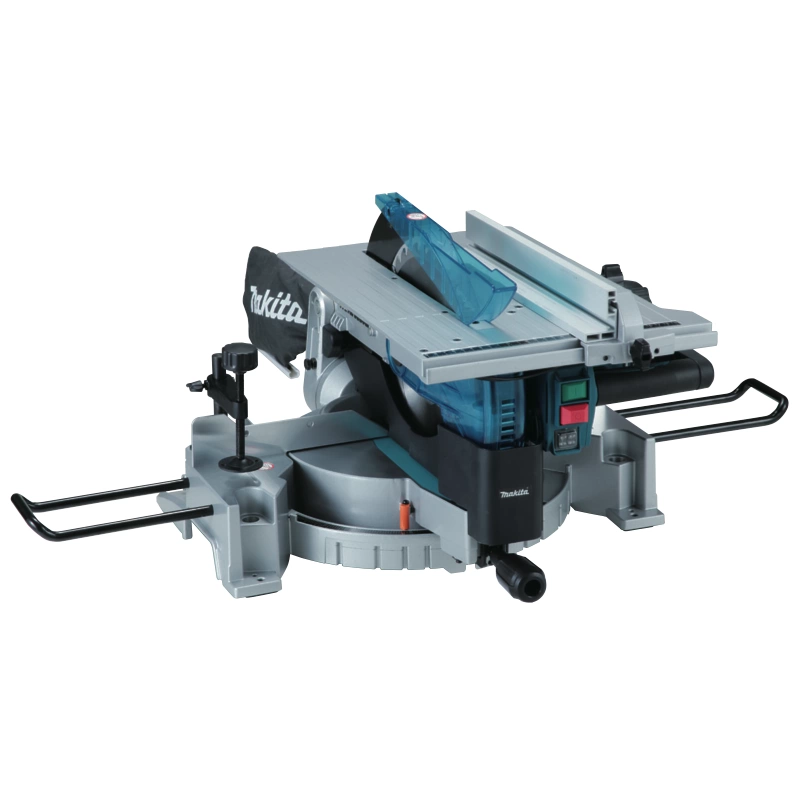

| Product Name | Table Top Miter Saw |
| Blade Diameter | 305 mm (12") |
| Miter Angle | 47° L / 52° R |
| Bevel Angle | 45° L |
| Max Cutting Capacity | 90°: 62 x 200 mm (2-7/16 x 7-7/8") 90°: 95 x 155 mm (3-3/4 x 6-1/8") 45° Miter, L/R: 62 x 135 mm (2-7/16 x 5-5/16") 45° Miter, L/R: 95 x 110 mm (3-3/4 x 4-5/16") 90°, Table saw: 52 mm (2-1/16") |
| No Load Speed (RPM) | 3,800 |
| Dimensions (L x W x H) | 610 x 535 x 692 mm (24" x 21" x 27-1/4") Table Size (W x L) : 307 x 465 mm (12-1/8" x 18-1/4") |
| Net Weight | 20.9 kg (46.1 lbs) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
TCT Saw Blade, Vertical Vise, Dust Bag, Rip Fence, Ring, Triangular Rule, Push Stick, Blade Cover, Socket Wrench, Holder Set
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
