Product Detail
Features
- Factory Calibrated Class II Laser enables accurate alignment of blade and cutting line
- Large Cutting Capacity in a Compact Design and Less Weight
- Linear ball bearing system engineered to deliver "dead-on" accurate cuts
- Rear handle bevel lock is easily accessible and adjusts 0° - 45° (left and right) with positive stops at 0°, 45° (left and right)
- See-through blade guard system for greater visibility of blade and line of cut
Specification
| Thumbnail |  |

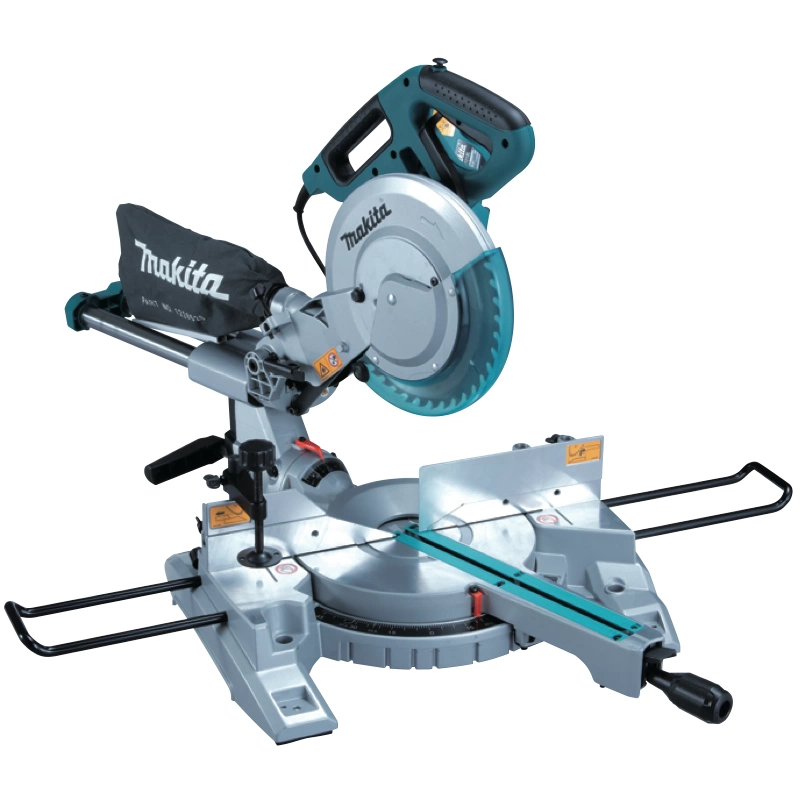

| Model Name | LS1018L |
| Continuous Rating Input | 1,430 W |
| Product Name | Slide Compound Saw |
| Blade Diameter | 260 mm (10-1/4") |
| Miter Angle | 47° L / 60° R |
| Bevel Angle | 45° L / 45° R |
| Max Cutting Capacity | 90°: 91 x 310 mm (3-5/8 x 12-13/64") 45°: 91 x 220 mm (3-5/8 x 8-5/8") |
| No Load Speed (RPM) | 4,300 |
| Dimensions (L x W x H) | 825 x 536 x 633 mm (32-1/2" x 21-1/8" x 25") |
| Net Weight | 20.6 kg (45.4 lbs) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
TCT Saw Blade (B-14277), Vertical Vise, Socket Wrench, Triangular Rule, Dust Bag, Holder assembly
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
