Product Detail

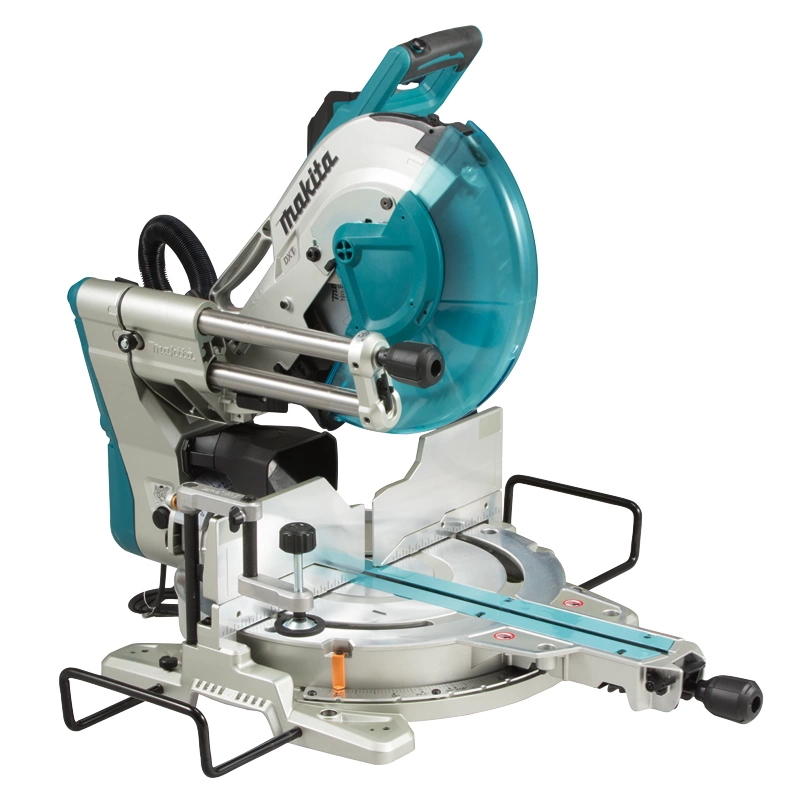

LS1219L 305 mm (12")

Slide Compound Saw


Features


  • Unique 2-Steel Rail Sliding System Design Allows Operation Flush Against a Wall
  • Increased capacity for up to 203 mm (8") crown molding (vertically nested), 171 mm (6-3/4") baseboard (vertical), and 382 mm (15") crosscuts at 90°
  • Dual dust collection ports provide excellent dust extraction performance
  • Integrated guide fences for increased rigidity and high cutting accuracy
  • Single sliding system enables smooth operation to produce superior cuts

Specification



Thumbnail
Model NameLS1219L
Continuous Rating Input1,800 W
Product NameSlide Compound Saw
Blade Diameter305 mm (12")
Hole DiameterEuropean Countries: 30 mm (1-3/16")
Others: 25.4 mm (1")
AngleBevel: 48° L | 48° R
Miter: 60° L | 60° R
Max Cutting CapacityCrown Molding Vertically Nested: 203 mm (8")
Crown Molding Lying Flat: 320 mm (12 - 5/8")
Base Board Against Fence: 171 mm (6 - 3/4")
Base Board Lying Flat with auxiliary wood on base: 416 mm (16 - 3/8")
No Load Speed (RPM)3,200
Dimensions (L x W x H)898 x 664 x 725 mm (35-1/4" x 26-1/8" x 28-1/2")
Net Weight29.5 kg (65.0 lbs.)
Power Supply Cord2.5 m (8.2 ft)

Standard Equipment
TCT Saw Blade (B-67474), Vertical Vise, Hex Wrench, Triangular Rule, Dust Bag

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
